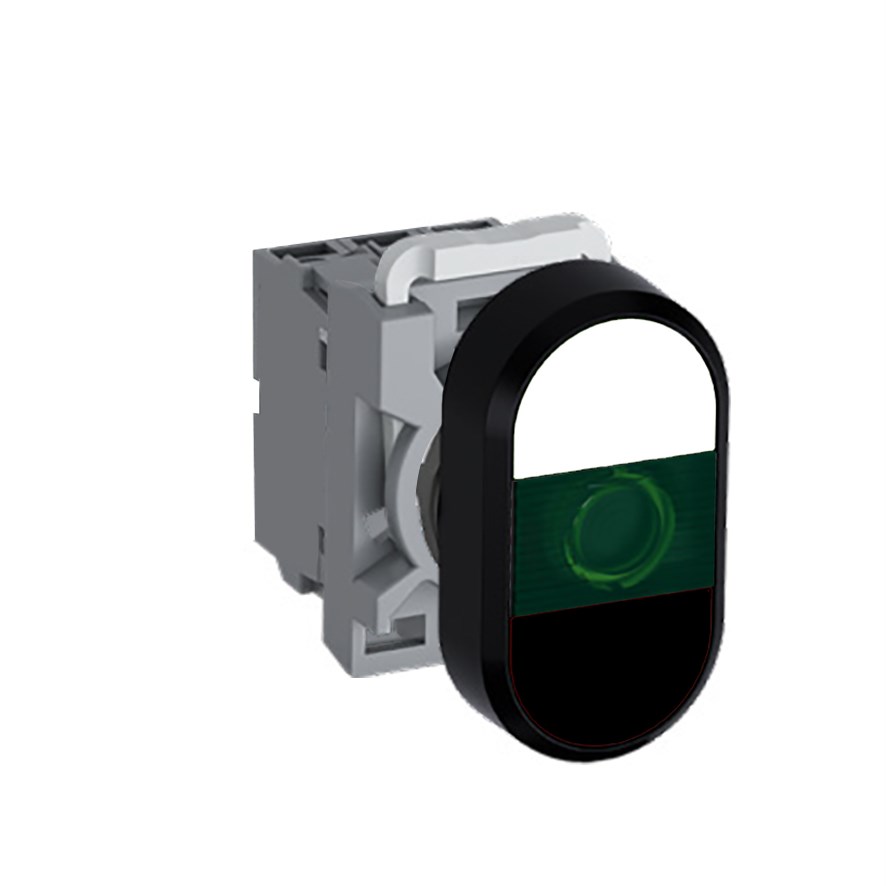

ABB MPDIFGWB711 Illuminated Double Pushbutton Kit Flush/Flush Momentary Green White/Black 230VAC/DC 1NO+1NC

Product Code: MPDIFGWB711

  • Illuminated pushbutton with IP66 front protection
  • Operates at 230 VAC/DC, ideal for tough environments
  • Green LED for clear visibility and indication
  • Suitable for mining, construction & heavy industry
  • Flush actuator with 1NO+1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a white upper actuator and a black lower actuator. The green indicator does not have any text. The kit includes an integrated green LED and operates at 230 V AC. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The pushbutton is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
