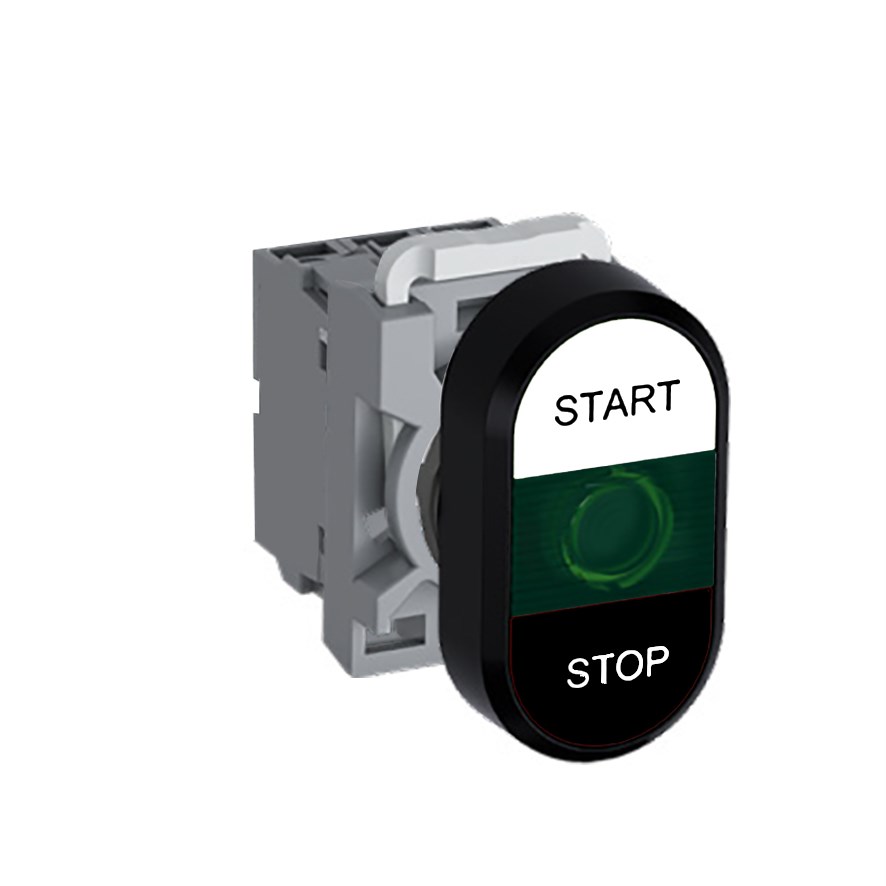

ABB MPDIFGWBS111 Illuminated Double Pushbutton Kit Flush/Flush Momentary Grn Start/Stop White/Black 24VAC 1NO+1NC

Product Code: MPDIFGWBS111

  • Illuminated pushbutton with green built-in LED
  • IP66 front protection for harsh environments
  • Operates at 24 VAC/DC with 1NO+1NC contacts
  • Suitable for mining, construction, heavy industry
  • Features flush actuator and plastic bezel
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush design. It features a white upper actuator for start and a black lower actuator for stop. The kit includes a green indicator with text. The integrated LED is green and operates on 24V AC/DC power. The contact configuration is 1 normally open (NO) and 1 normally closed (NC). This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
