This robust pushbutton is a reliable choice for industrial and commercial applications, specifically designed to meet the demanding needs of mining, construction, and heavy industries. With its comprehensive features and compliance with international standards, it stands as a solid component in your control system setup.
The pushbutton operates at a rated voltage of 230 VAC/DC, ensuring compatibility with various electrical systems. Its illuminated design enhances visibility in low-light environments, making it an ideal choice for settings where clarity is crucial. The built-in LED lamp emits a red light, providing clear indication when activated.
Engineered for durability, this pushbutton boasts an impressive degree of protection: IP66 on the front side ensures resistance against dust and powerful water jets, while IP20 at the terminal end offers basic protection against finger contact. This makes it suitable for harsh conditions often encountered in industrial environments.
Safety and reliability are further underscored by its adherence to multiple standards and approvals including EN IEC 60947-1/5-1/5-5, EN IEC 60073/60529, EN 50013, DIN 40050-9 along with UL 508 and CSA C22.2 No. 14 certifications. These endorsements confirm that the product meets stringent global safety requirements.
In terms of thermal performance, it supports an ambient temperature range from -25 to 70 degrees Celsius which allows for operation in both cold and hot climates without compromising functionality. The rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—ensuring resilience against transient overvoltages.
The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact which provides flexibility in circuit design options. A flush actuator type complements its sleek appearance while maintaining practicality during use.
Constructed with user-friendly installation in mind; it fits into a standard cutout size of 22 mm—a common dimension that facilitates easy integration into existing panels or new setups alike. The bezel material is made from durable plastic contributing to lightweight yet sturdy construction.

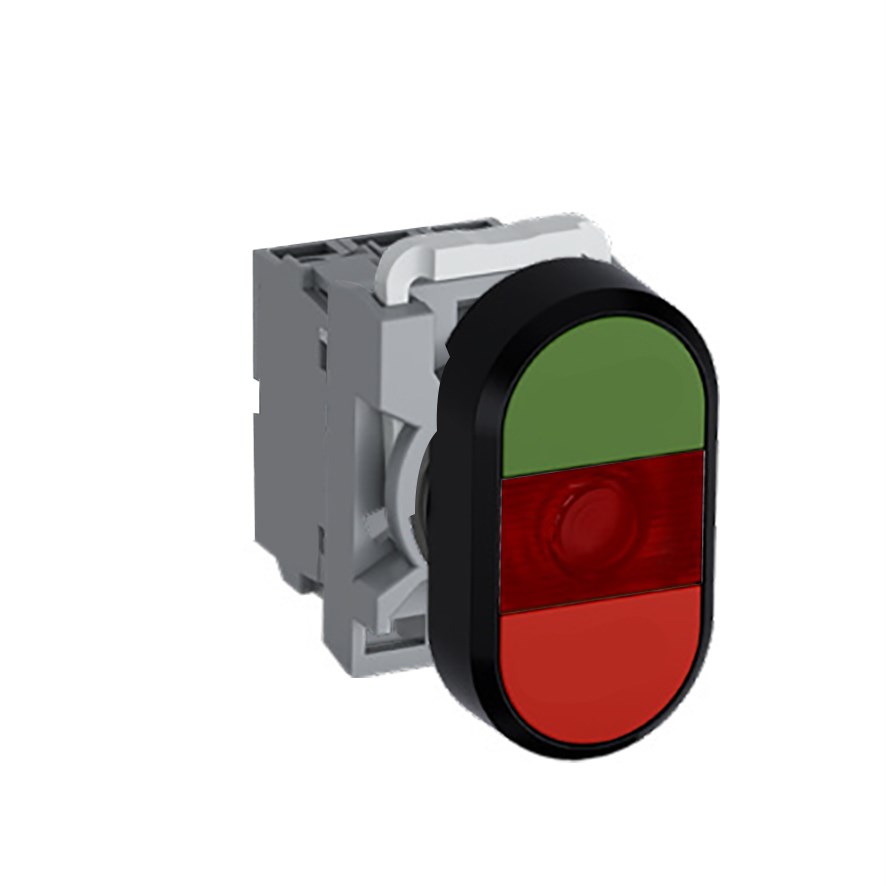

Though devoid of any legend text on the button itself—the color-coded design speaks volumes: green on top signifies readiness or go status whereas red below indicates stop or caution—offering intuitive visual cues during operation processes without additional markings needed.
Included within this package are essential components such as operator unit contact block holder as well as LED block—all designed cohesively ensuring seamless assembly straight out-of-the-box experience saving time during installation phases particularly beneficial across large-scale projects involving multiple units deployment simultaneously across site locations globally!
