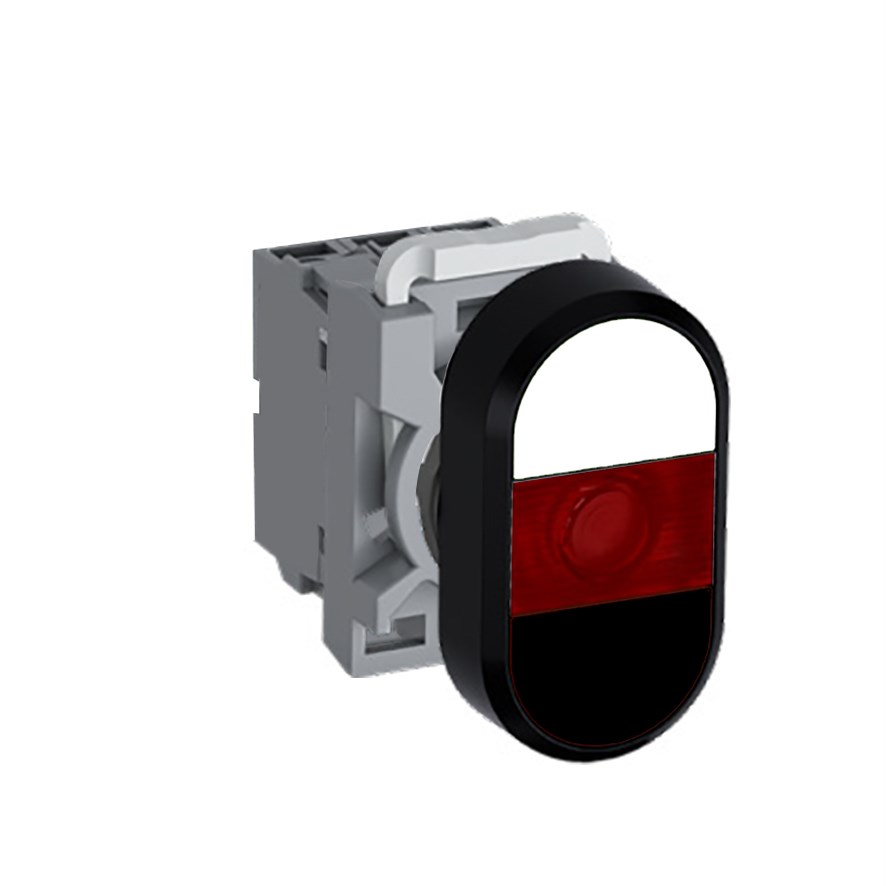

ABB MPDIFRWB411 Illuminated Double Pushbutton Kit Flush/Flush Momentary Red White/Black 110-130VAC/DC 1NO+1NC

Product Code: MPDIFRWB411

  • Illuminated pushbutton with LED for clear visibility
  • Durable IP66 front protection against dust and water
  • Operates in extreme temps from -25 to 70°C
  • Suitable for mining, construction, heavy industry
  • Red LED with white/black button for distinct operation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a white upper actuator and a black lower actuator. The green indicator does not have any text. The kit includes an integrated red LED and operates on 110-130V AC power. The contact configuration is 1NO+1NC. The front of the pushbutton has an IP66 rating for protection against dust and water, while the terminals have an IP20 rating. This kit provides all the necessary components for installation.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
