When it comes to selecting the right pushbutton for industrial applications, understanding the technical specifications is crucial. This particular pushbutton is designed with robust features suitable for demanding environments such as mining, construction, and heavy industry.
Operating at a rated voltage of 24 VAC/DC, this illuminated pushbutton ensures visibility even in dimly lit conditions thanks to its built-in red LED lamp. The illumination not only enhances operational efficiency but also adds an extra layer of safety by providing clear indication when activated.
The product boasts a high degree of protection with IP66 rating on the front and IP20 at the terminal end. This means it offers excellent resistance against dust ingress and powerful water jets from any direction, making it ideal for harsh industrial settings. Additionally, it adheres to multiple international standards including EN IEC 60947-1 and UL 508 among others, ensuring reliability and compliance with global safety norms.
With an ambient temperature range spanning -25 to 70 degrees Celsius, this pushbutton can withstand extreme weather conditions without compromising performance. Its rated insulation voltage stands at a substantial 690 V while offering a rated impulse withstand voltage of 6 kV—attributes that underscore its durability under electrical stress.
The contact configuration is versatile with one normally open (1NO) and one normally closed (1NC) contact setup. This flexibility allows integration into various control systems seamlessly. The actuator type is flush/flush which provides a sleek appearance while maintaining functionality.
Designed for momentary operation, this pushbutton returns to its default position once released—a feature particularly useful in applications requiring temporary activation signals. It supports a rated thermal current up to 10 A which accommodates substantial electrical loads typical in industrial environments.

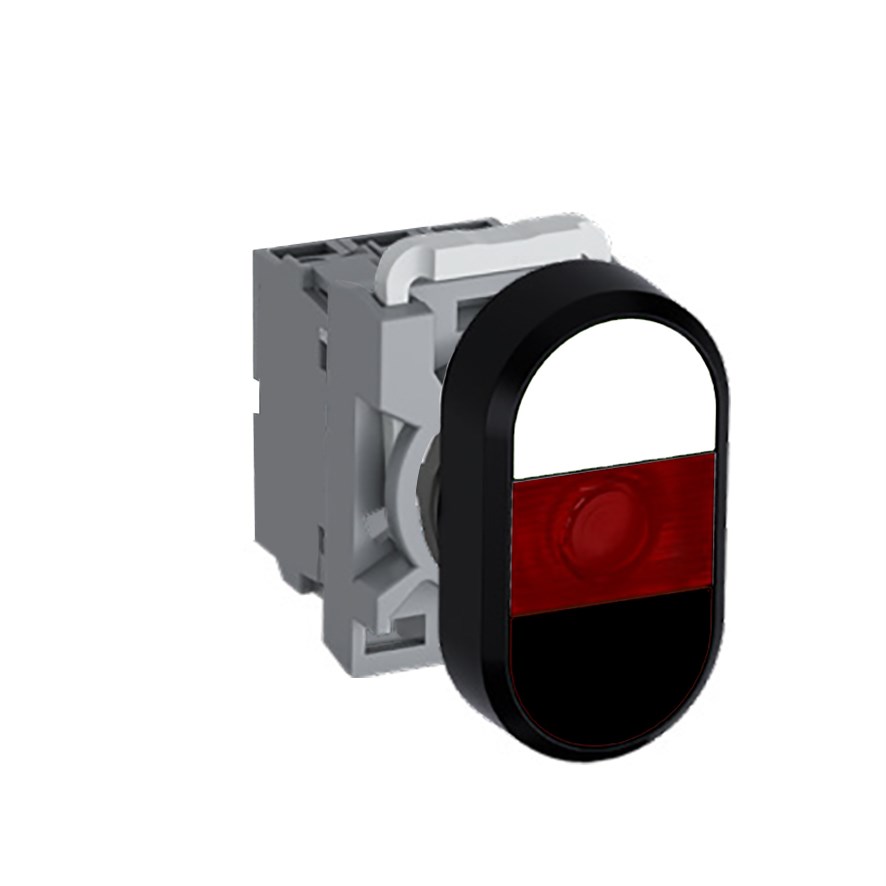

Aesthetically pleasing yet functional, the button presents a white upper section contrasted by a black lower part housed within a plastic bezel material that ensures longevity against wear and tear. The cutout size required for installation is standardized at 22 mm simplifying mounting processes across different panels or consoles.
Included in the package are essential components such as the operator unit itself along with contact block holder and LED block ensuring you have everything needed for straightforward installation without additional purchases.
In summary, this pushbutton combines durability with practicality making it an excellent choice where reliability meets rugged environmental demands—all backed by comprehensive standard approvals ensuring peace of mind during operation.
