This robust accessory is designed to meet the demanding requirements of industrial environments, making it an ideal choice for applications in mining, construction, and heavy industry. With a rated voltage of 24 VAC/DC and built-in illumination, this product ensures visibility and operational efficiency even in challenging conditions.
The device boasts a high degree of protection with an IP66 rating at the front and IP20 at the terminal, ensuring its resilience against dust and water ingress. This makes it suitable for use in harsh environments where reliability is paramount. The standards and approvals include EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications—highlighting its compliance with international safety standards.
Operating efficiently within an ambient temperature range from -25 to +70 degrees Celsius, this accessory is versatile enough to handle extreme weather conditions without compromising performance. It features a rated insulation voltage of 690 V and can withstand impulse voltages up to 6 kV—attributes that underscore its durability in electrical applications.

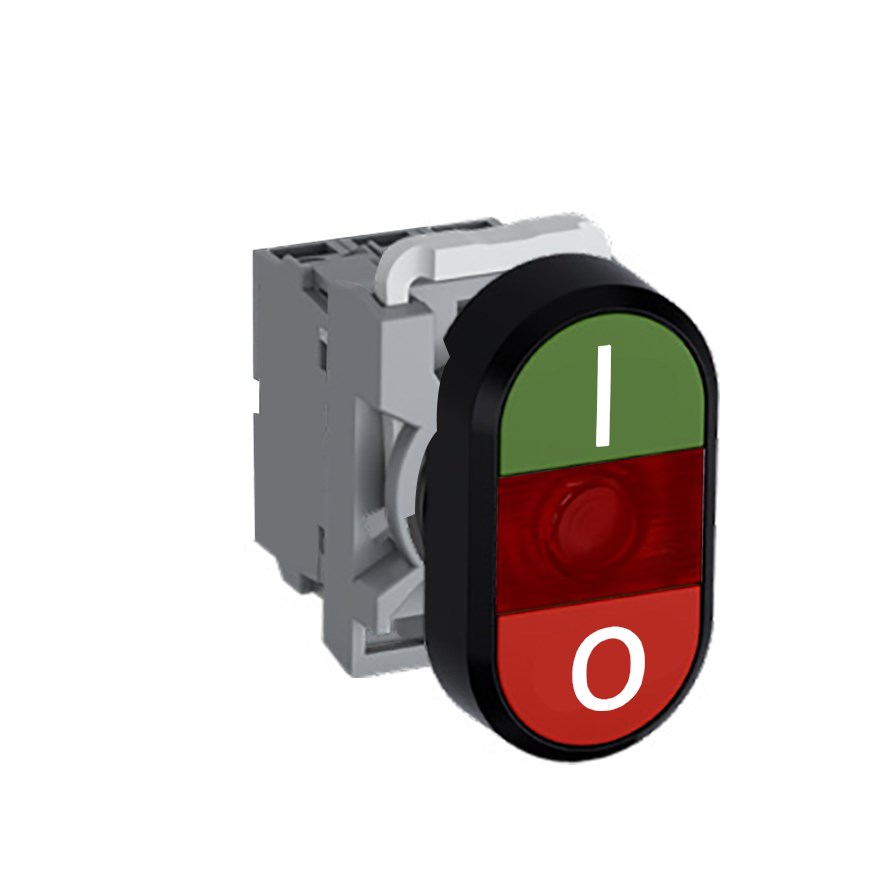

The contact configuration includes two normally open (2NO) contacts with a rated thermal current of up to 10 A. The actuator type is flush/flush with red illumination provided by an integrated LED lamp for clear signaling during operation. Notably practical for operators are the legend markings “I” on the upper section and “O” on the lower section which facilitate straightforward identification.
Constructed with a plastic bezel material that ensures longevity while maintaining lightweight properties; this accessory fits into standard cutout sizes measuring at Ø22 mm—a common dimension that allows easy integration into existing systems or panels.
An innovative design element worth noting is the dual-color button configuration: green on top signifies 'on' status whereas red below indicates 'off'. This color coding aligns with intuitive user interactions enhancing safety by reducing operational errors through visual cues alone—a crucial factor when working under pressure or limited visibility scenarios often found onsite across industries mentioned earlier such as mining or construction where quick decision-making based upon immediate feedback could be vital.
Included within each unit are essential components like operator controls along side contact block holders plus LED light blocks—all necessary parts bundled together simplifying procurement processes thus saving time otherwise spent sourcing separate items individually elsewhere externally from different suppliers potentially leading towards compatibility issues later down line if not standardized correctly initially before installation phase begins properly first off instead here everything needed comes pre-packaged ready-to-go straightaway right out box itself directly onto site location immediately following delivery arrival point onwards thereafter seamlessly integrating smoothly effortlessly too!
