Product Code: MPDIFYWB611

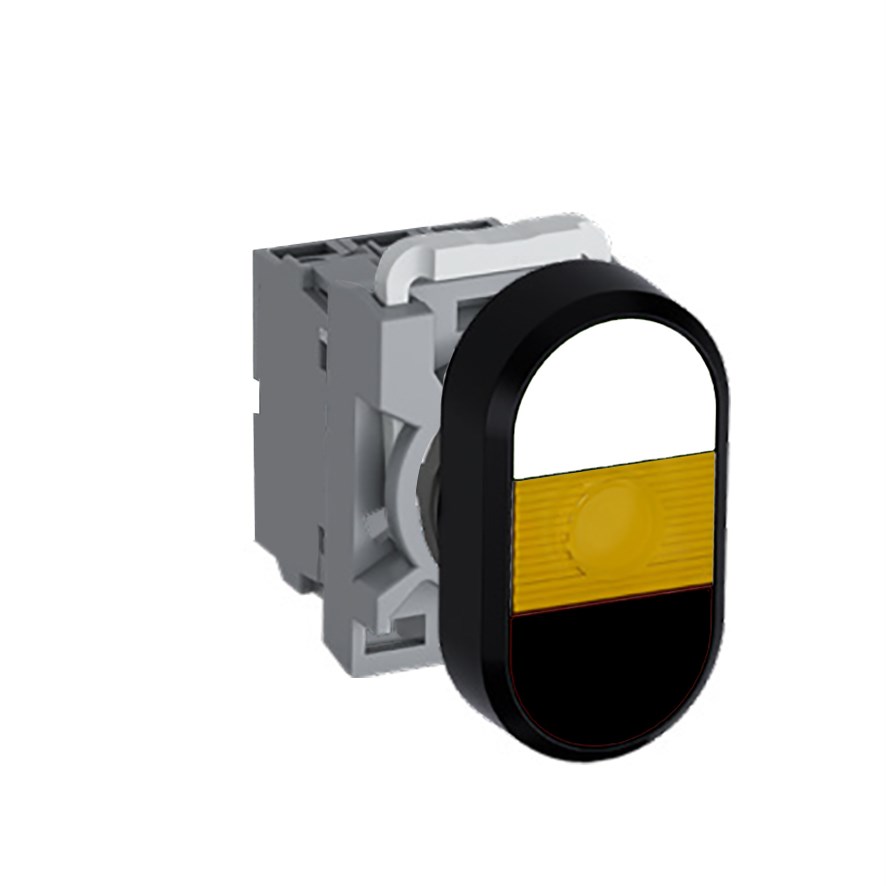

Illuminated pushbutton with yellow LED
IP66 front protection, suited for harsh conditions
Operates at -25 to 70°C ambient temps
Dual contact config: 1NO+1NC for versatility
Suitable for mining and heavy industry use

Specifications

Contacts	1NO + 1NC
Rated Voltage DC (V)	220
LED Block Rated Voltage	220 VDC
Upper/Lower Button Text	No Text/No Text
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Flush
Ambient Temperature	-25 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Plastic
Button Colour	White (Upper), Black (Lower)
Colour	Yellow
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Yellow
Lamp Type	Built-in LED
Legend	No Text
Light Blocks Type	LED Block
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated double pushbutton kit is designed for momentary use. It features a flush/flush configuration with a white upper actuator and a black lower actuator. The yellow indicator does not have any text. The integrated LED is green and operates at 220 V DC. The contact configuration is 1NO+1NC. This kit belongs to the modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
