In the demanding environments of mining, construction, and heavy industry, reliability and durability are paramount. Enter the robust pushbutton designed to meet these exacting standards while offering a seamless user experience. This illuminated pushbutton operates at a rated voltage of 230 VAC/DC and is equipped with an IP66 front degree of protection, ensuring it withstands dust-tight conditions and powerful water jets. The terminal offers an IP20 rating for added safety.
Built to comply with multiple international standards such as EN IEC 60947-1/5-1/5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14 among others, this product assures compatibility and adherence to global electrical safety norms.
Operating efficiently within ambient temperatures ranging from -25°C to 70°C, this pushbutton is versatile enough for various climatic conditions. The rated insulation voltage stands at a formidable 690 V with a rated impulse withstand voltage of up to 6 kV—both indicative of its resilience against electrical surges.
The contact configuration includes both Normally Open (NO) and Normally Closed (NC) contacts (1NO+1NC), allowing flexibility in circuit design. With a rated thermal current capacity of 10 A, it supports substantial load handling capabilities.

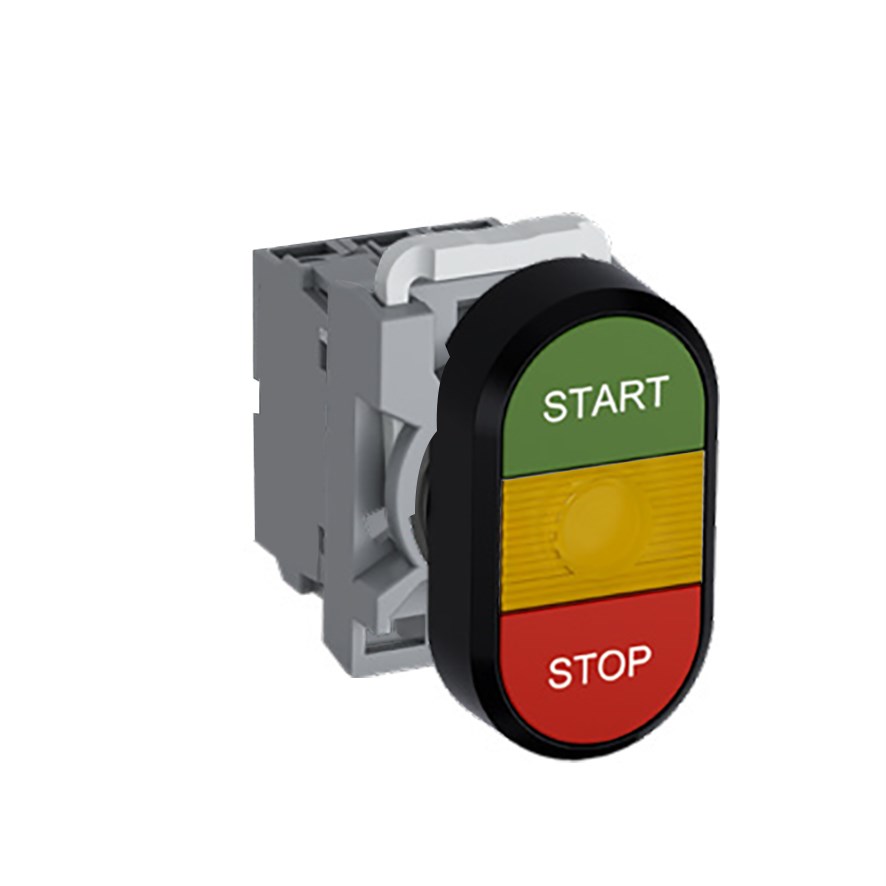

The actuator type features a flush design that integrates seamlessly into control panels without protruding excessively—aesthetic yet functional. The button itself is color-coded for easy identification: green for "Start" on the upper section and red for "Stop" on the lower section—aiding in quick decision-making during operations.
Illumination is provided by built-in yellow LEDs housed within LED blocks ensuring visibility even in low-light conditions or dimly lit environments often found in industrial settings. This momentary function button returns automatically to its default position after being pressed—an essential feature for maintaining operational flow without manual resets.
Constructed with plastic bezel material around its cutout size of 22 mm ensures ease of installation into standard panel configurations while maintaining structural integrity under mechanical stress.
Included components such as the operator unit, contact block holder along with the LED block make setup straightforward reducing downtime during installation or maintenance phases.
Whether you’re involved in designing control systems or retrofitting existing setups across sectors like mining or construction—this pushbutton promises performance aligned with rigorous industrial demands while providing peace-of-mind through compliance with stringent safety approvals.
