When selecting a pushbutton for industrial and commercial applications, it's essential to focus on the specifications that matter most. This pushbutton is designed with durability and functionality in mind, making it suitable for demanding environments such as mining, construction, and heavy industry.
Starting with its electrical characteristics, this pushbutton operates at a rated voltage of 24 VAC/DC. It features an illuminated design using a built-in LED lamp that emits a yellow light, ensuring visibility even in low-light conditions. The contact configuration includes one normally open (1NO) and one normally closed (1NC) contact, providing flexibility for various control circuit designs.
In terms of safety and protection, the device boasts an impressive degree of protection with IP66 at the front end and IP20 at the terminal. This means it offers excellent resistance against dust ingress and powerful water jets from any direction while maintaining adequate protection against accidental touch at the terminals. Furthermore, it adheres to multiple standards including EN IEC 60947-1, EN IEC 60947-5-1, UL 508 among others—these approvals ensure compliance with international safety regulations.

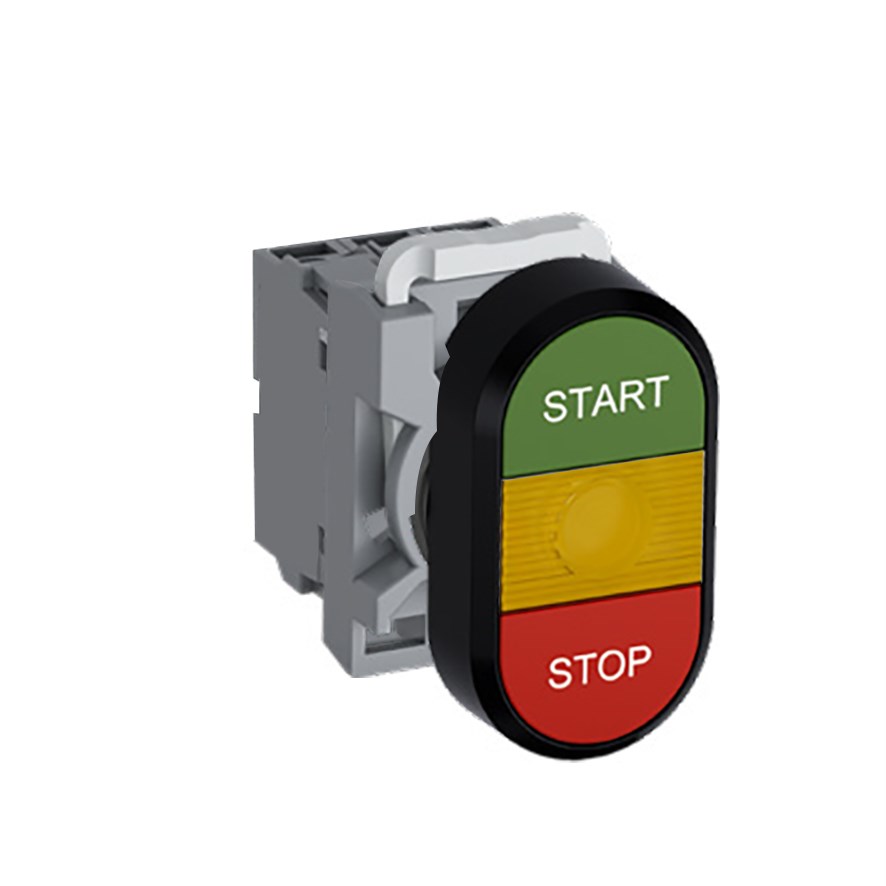

The mechanical aspects are equally noteworthy. The actuator type is flush/flush which provides a sleek design without protruding elements that could be susceptible to damage or accidental activation. The button itself features two distinct colors: green on the upper part and red on the lower part—ideal for clear status indication or dual-function operations.
The bezel is constructed from plastic material contributing to its lightweight yet robust build quality. With an ambient temperature range from -25 to 70 degrees Celsius, this pushbutton can withstand harsh environmental conditions commonly found in industrial settings.
For installation convenience, it requires a standard cutout size of 22 mm—a common dimension that ensures compatibility with existing panels or enclosures without requiring modifications. Also included are essential components such as the operator unit itself along with contact block holder ensuring straightforward assembly upon delivery.
Finally addressing its electrical endurance; it supports a rated insulation voltage up to 690 V along with a rated impulse withstand voltage of 6 kV indicating high resilience against transient overvoltages often encountered during switching operations within industrial setups plus carrying capability stands firm at thermal current rating reaching up till ten amperes thus assuring reliability under continuous operational loads
This comprehensive feature set makes this pushbutton not only reliable but also versatile across numerous applications where dependable human-machine interface solutions are critical
