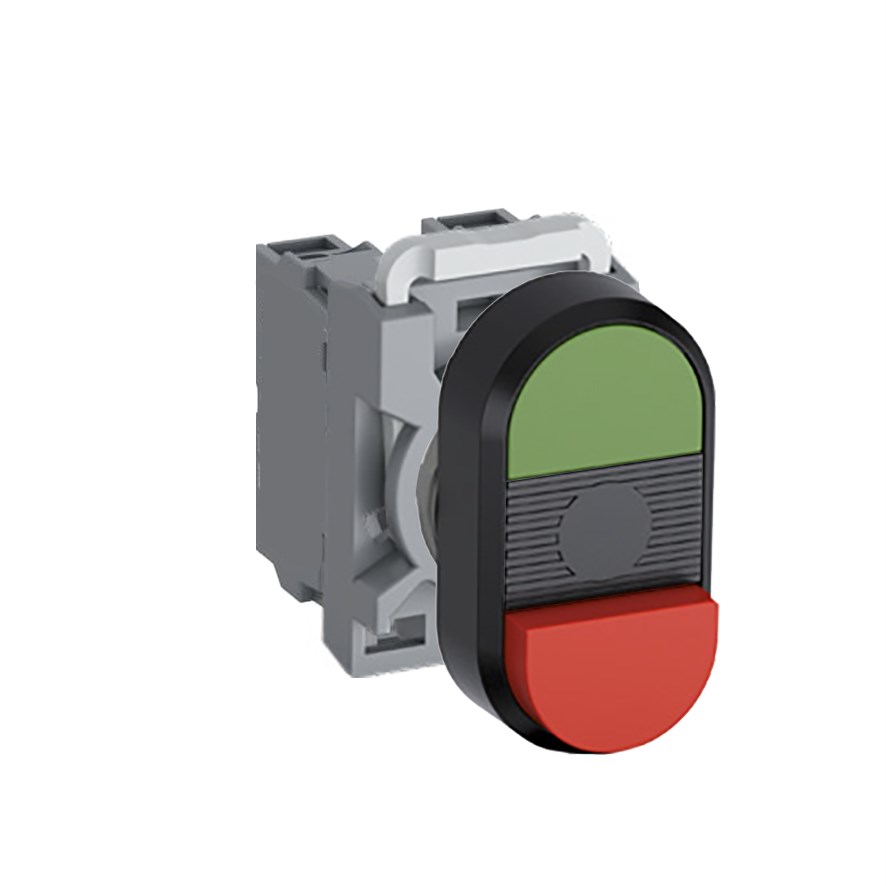

Product Code: MPDNEBGR11

Non-illuminated pushbutton with IP66/IP20 protection
Operates in -25 to 70°C temperature range
1NO+1NC contact configuration for versatility
Flush/Extended actuator with plastic bezel
Green upper and red lower button design

Specifications

Contacts	1NO + 1NC
Rated Frequency (Hz)	50/60
LED Block Rated Voltage	Not Applicable
Upper/Lower Button Text	No Text/No Text
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Extended
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Button Colour	Green (Upper), Red (Lower)
Colour	Black
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Illumination	Non-Illuminated
Includes	Operator, Contact Block and Contact Block Holder
Legend	No Text
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Non-Illuminated Double Pushbutton Kit includes an upper button in green and a lower button in red. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The buttons can be flush or extended. The kit includes the operator, contact block, and contact block holder. No texts are included.
