Product Code: MPDNEBWBO11

Non-illuminated pushbutton with IP66 front protection
Operates in temperatures from -25 to 70°C
Rated insulation voltage of 690V and 6kV impulse withstand
Features flush/extended actuator, momentary function
Includes operator, contact block, and holder

Specifications

Contacts	1NO + 1NC
LED Block Rated Voltage	Not Applicable
Upper/Lower Button Text	ON/OFF
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Extended
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Button Colour	White (Upper), Black (Lower)
Colour	Black
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Function	Momentary
Illumination	Non-Illuminated
Includes	Operator, Contact Block and Contact Block Holder
Legend	On (Upper), Off (Lower)
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

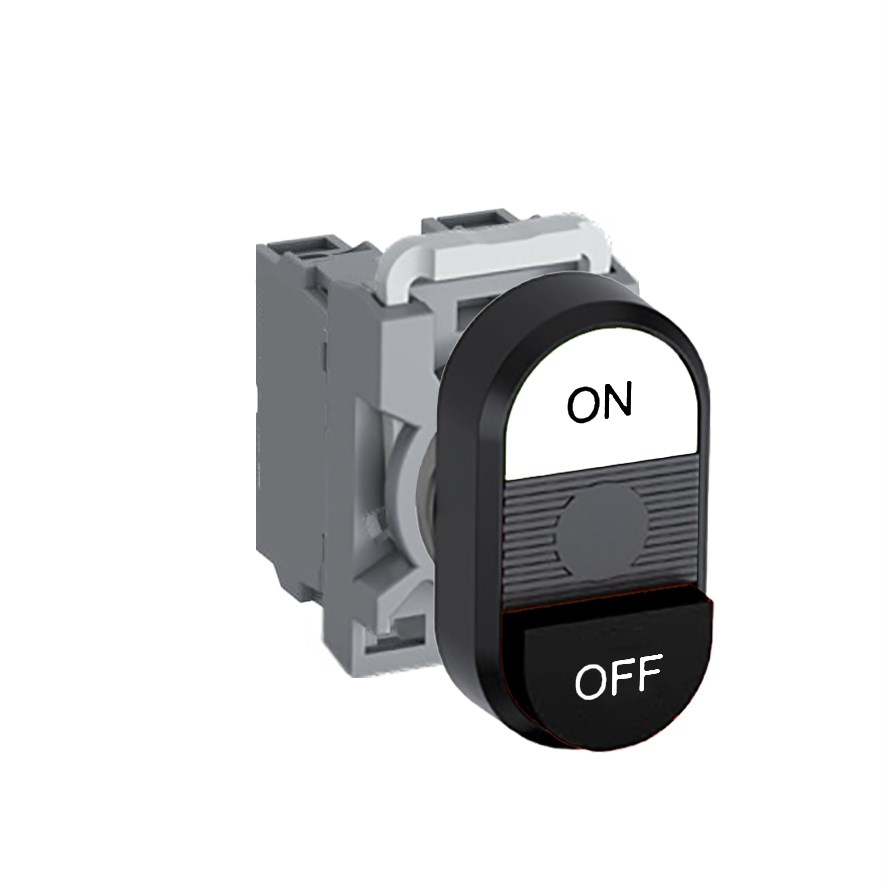

The non-illuminated double pushbutton kit is designed for momentary use. It features a flush/extended actuator in white for the upper button (on) and black for the lower button (off). The contact configuration is 1 normally open (NO) and 1 normally closed (NC). This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
