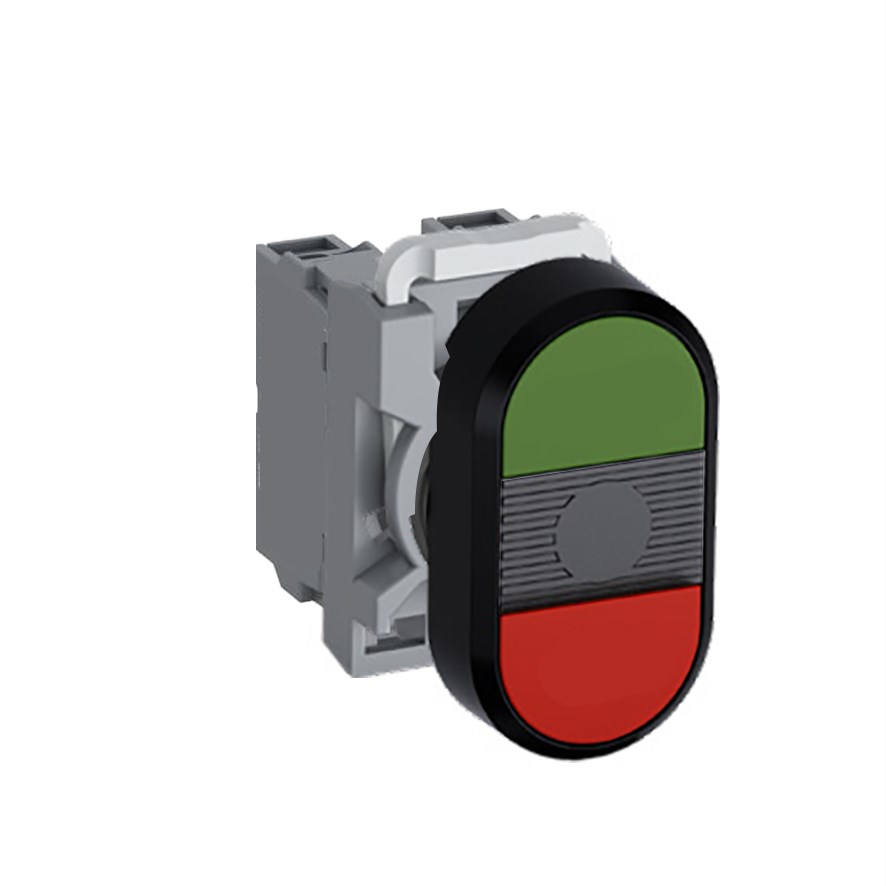

ABB MPDNFBGR11 Non-Illuminated Double Pushbutton Kit Flush/Flush Green/Red 1NO+1NC

Product Code: MPDNFBGR11

  • Non-illuminated pushbutton with flush actuator
  • High protection: IP66 front, IP20 terminal
  • Operates in -25 to 70°C ambient temp
  • Dual color button: Green/Red
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Black
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend No Text
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Non-Illuminated Double Pushbutton Kit includes an upper-green and lower-red flush/flush design. It has 1 normally open (NO) and 1 normally closed (NC) contact. The kit consists of an operator, contact block, and contact block holder.
