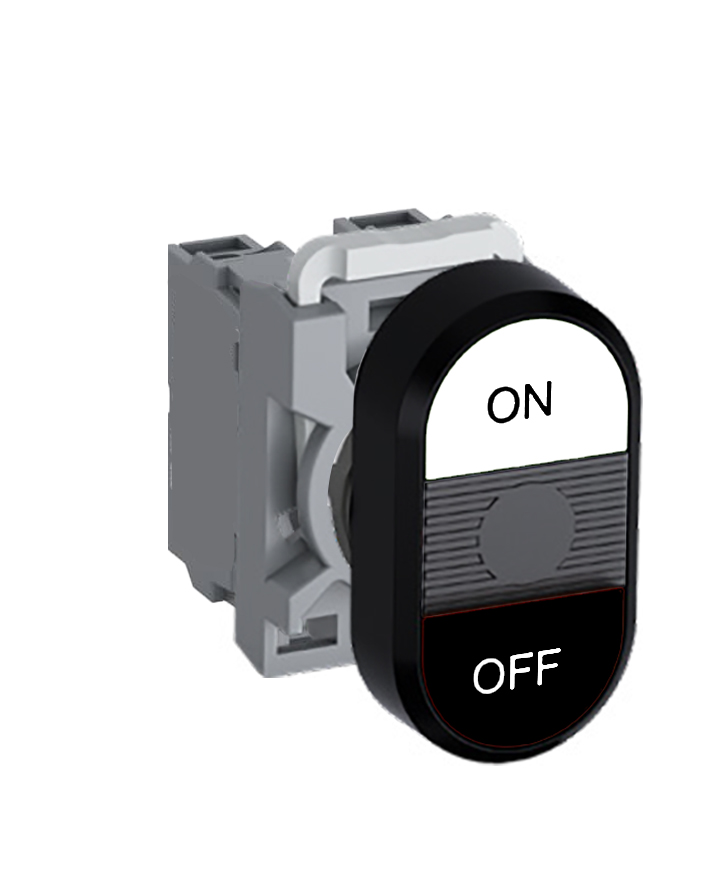

ABB MPDNFBWBO02 Non-Illuminated Double Pushbutton Kit Flush/Flush On/Off White/Black 2NC

Product Code: MPDNFBWBO02

  • Non-illuminated accessory with IP66/IP20 protection
  • Operates in -25 to 70°C ambient temperature
  • Rated insulation voltage of 690V, withstands 6kV impulse
  • Features a flush actuator with a plastic bezel
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Black
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend On (Upper), Off (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This robust accessory is designed for industrial and commercial applications, offering a comprehensive solution with its non-illuminated configuration. The product showcases an impressive degree of protection, boasting an IP66 rating on the front to guard against dust and powerful water jets, while the terminal maintains an IP20 rating for safety in less demanding environments. Meeting international standards such as EN IEC 60947-1, EN IEC 60947-5-1, and others including UL 508 and CSA C22.2 No. 14, this accessory ensures compliance with rigorous global benchmarks.</p><p>Operating efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius, it provides versatility across various environmental conditions. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, the product is well-suited for high-demand electrical systems, ensuring reliability in performance.</p><p>The contact configuration features two normally closed (2NC) contacts which are ideal for safety circuits where continuity must be maintained until intentional disconnection occurs. Rated at a thermal current of up to 10 A, this accessory can handle significant power loads without compromising functionality.</p><p>Designed with user convenience in mind, the actuator type is flush/flush providing easy operation while maintaining a sleek profile. The legend markings &amp;quot;On&amp;quot; (Upper) and &amp;quot;Off&amp;quot; (Lower) are clearly indicated on the button&amp;#39;s surface for straightforward usability. The bezel material crafted from durable plastic ensures longevity under regular use.</p><p>Installation is straightforward thanks to its standard cutout size of 22 mm making it compatible with common panel designs. The button colours are distinctively marked with white on the upper section representing &amp;#39;On&amp;#39; and black on the lower section indicating &amp;#39;Off&amp;#39;, aiding quick visual identification during operation.</p><p>Included components such as the operator, contact block, and contact block holder streamline setup processes by providing all necessary elements required for immediate integration into your system.</p><p>This accessory stands out as a reliable choice due to its adherence to stringent standards combined with practical design elements tailored for industrial needs—a dependable partner in maintaining operational efficiency across various settings.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
