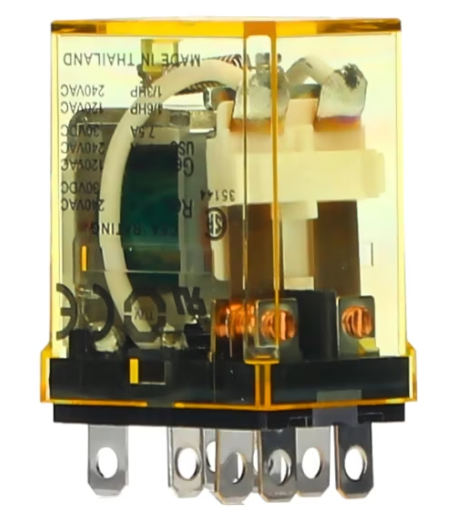

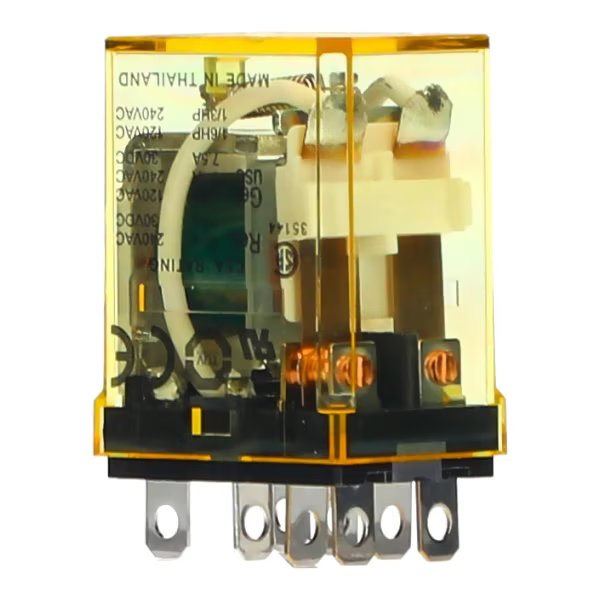

IDEC DPDT W/LED & CHECK BUTTON 12V DC RELAY RH2B-ULC-DC12V

Product Code: RH2B-ULC-DC12V

The IDEC RH2B-ULC-DC12V is a DPDT relay with a 12V DC coil, designed for industrial applications. It features a bright LED indicator and check button for easy status verification and troubleshooting. With its robust 10A contact rating, this relay ensures reliable switching performance. Additionally, it meets RoHS compliance standards, ensuring durability and safety in industrial environments.

Technical Specifications

Operating Humidity 45 to 85% RH (No Condensation)
Terminal Shape Blade Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Relay Options Indicator Light & Check Button
Ambient Temperature Range (°C) -25 to 70
Coil Voltage DC (V) 12
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 500,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 2
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 1.4VA (50Hz), 1.2VA (60Hz)
Power Consumption (W) DC: 0.9W
Rated Current (A) 10
Resistance to Vibrations 10 to 55Hz
Terminal Type Blade
Dimensions (mm) 21W x 42H x 27.5D
Weight (g) 37
