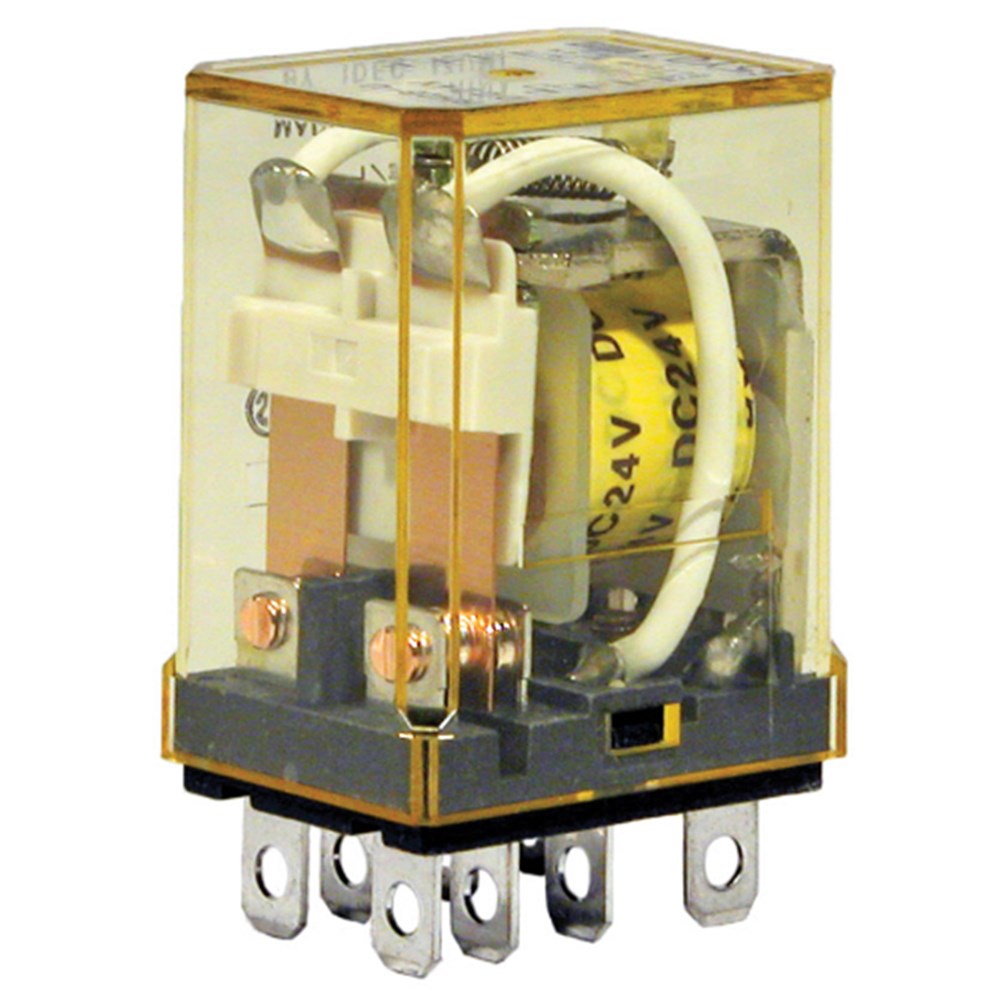

IDEC RH2B-ULC-DC24 DPDT W/LITE & CHECK BUTTON 24VDC RELAY

Product Code: RH2B-ULC-DC24

The IDEC RH2B-ULC-DC24 is a compact power relay from the RH2 Series, featuring a double-pole double-throw (DPDT) configuration with a 24VDC coil voltage. It can handle a switching current of up to 10A and is equipped with blade-style terminals for easy connection. This relay also includes an LED indicator and check button for quick diagnostics and status checks, enhancing its functionality in various power applications.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
No. of Poles 2P
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay with LED indicator & check button
Series RH
Terminal Type Blade
