Specifications

Dimensions (mm)	40W x 40H x 68D
Mushroom Diameter (mm)	40
Operational Temperature Range (°C)	-25 to 70
Weight (kg)	0.036
Storage Temperature (°C)	-40 to +85
Storage Temperature Range (°C)	-40 to 85
Enclosure Type (NEMA)	Type1, Type12, Type13, Type3R, Type4, Type4X

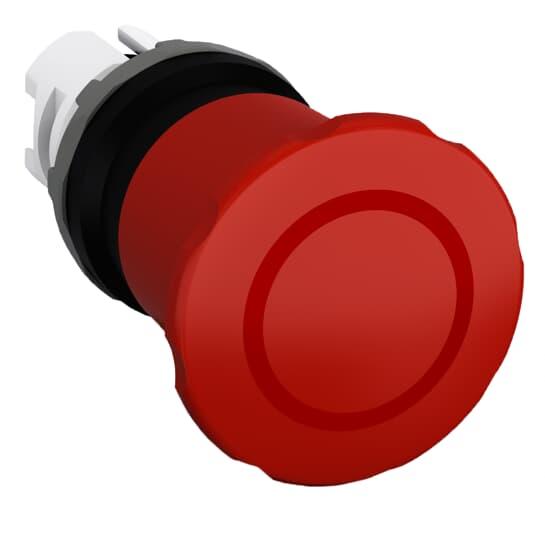

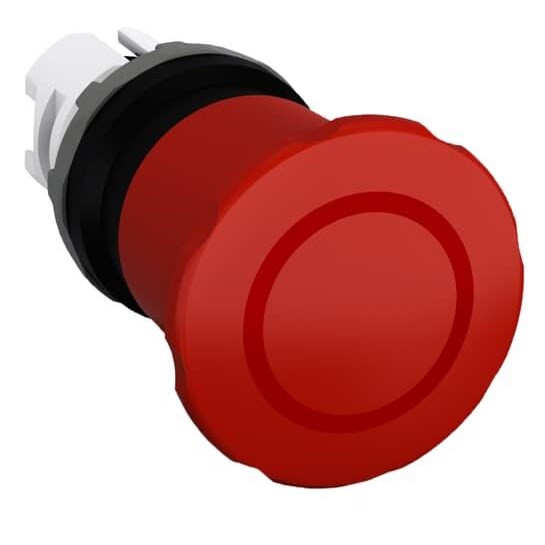

Product Type	Emergency Stop Pushbutton
Brand	ABB
Actuator Type	Mushroom 40mm
Colour	Multi-Colour
Degree of Protection	Front: IP66 Terminals: IP20
Depth	33.5 mm
Height	13 mm
Illumination	Non-illuminated
Mode of Operation	Maintained
Range	Modular Plastic
Release Method	Pull release
Standards and Approvals	EN/IEC 60947-5-5, EN/ISO 13850, IEC 60204-1
Width	33.5 mm
