Specifications

Dimensions (mm)	278W x 363.5H x 271D
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	400
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	1600
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1600
Rated Short-time Withstand Current - Icw (kA/3s)	30
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	1600
Rated Voltage (V)	690
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	50
EAN	8015644773359
Poles	3P
Current Rating (A)	1600
AC Voltage (V)	690
Icw (kA/1s) - Short-time Withstand Current Rating	50
Icw (kA/3s) - Short-time Withstand Current Rating	30
Iu - Uninterrupted Current Rating (A)	1600
Rated Operational Voltage (V)	690
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Current Type	AC
Degree of Protection	IP30
Depth	271 mm
Height	363.5 mm
Interlockable	Yes
Number of Poles	3
Power Loss	400 W
Rated Current	1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	18 kg
Width	278 mm

Description

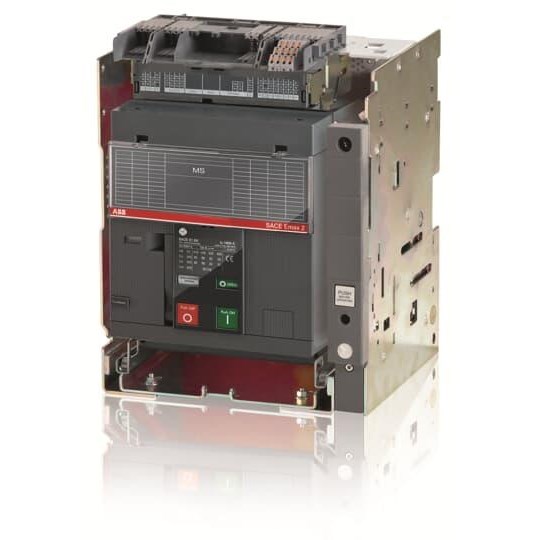

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E1.2N/MS 1600 THREE-POLE
