Specifications

Dimensions (mm)	278W x 363.5H x 271D
Size of Frame	E1.2
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	100
Rated Current (A)	800
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	800
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	800
Breaking Capacity 415V AC - Icu (kA)	66
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	800
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	50
EAN	8015644773298
Poles	3P
Breaking Capacity (kA)	66 @415V AC
Current Rating (A)	800
AC Voltage (V)	690
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	800
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Degree of Protection	IP30
Depth	271 mm
Height	363.5 mm
Interlockable	Yes
Number of Poles	3
Power Loss	100 W
Rated Current	800 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	18 kg
Width	278 mm

Description

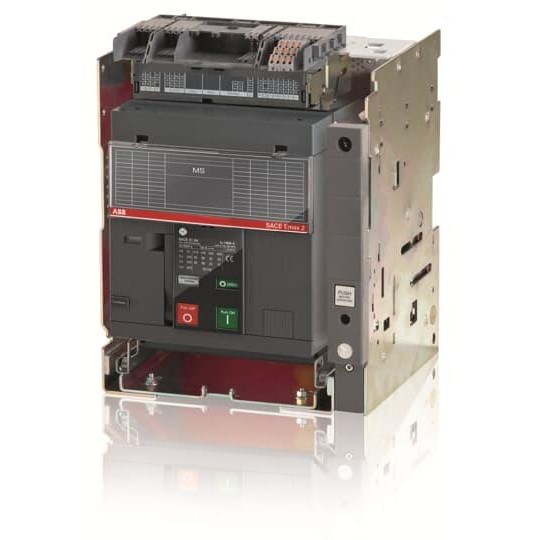

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E1.2N/MS 800 THREE-POLE
