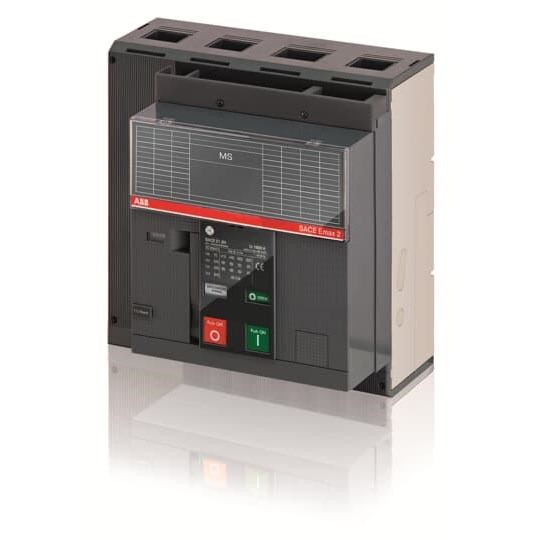

When it comes to selecting the right Air Circuit Breaker (ACB) for your industrial or commercial needs, understanding the technical specifications is crucial. This non-automatic ACB offers a robust solution with a focus on reliability and performance.
Designed to handle substantial electrical loads, this ACB boasts a rated current of 1600 A, making it suitable for demanding applications. It is engineered to withstand impulses up to 12 kV and has an impressive rated insulation voltage of 1000 V, ensuring safety and durability in high-voltage environments.
Operating at a rated voltage of 690 VAC, this breaker efficiently manages power distribution while maintaining minimal power loss at just 201 W. The unit's design includes four poles, providing comprehensive coverage for multi-phase systems.
Installation flexibility is ensured with its front connection type and bolt terminals. The specified tightening torque of 45 N-m guarantees secure connections that can withstand operational stresses over time. With dimensions measuring 280 mm in width, 296 mm in height, and a depth of 183 mm, this compact unit fits seamlessly into existing setups without compromising on performance.
The degree of protection offered by this breaker is classified as IP30. This means it provides solid protection against foreign objects larger than 2.5 mm but does not offer water resistance—something to consider when planning installation locations.
Compliance with IEC standards underscores the quality and safety credentials of this product. Weighing in at just 16 kg, it strikes an ideal balance between robustness and ease of handling during installation or maintenance tasks.
In summary, whether you're upgrading existing infrastructure or embarking on new projects within the industrial or commercial sectors, this non-automatic ACB presents itself as a reliable choice that meets stringent operational requirements while adhering to international standards.
