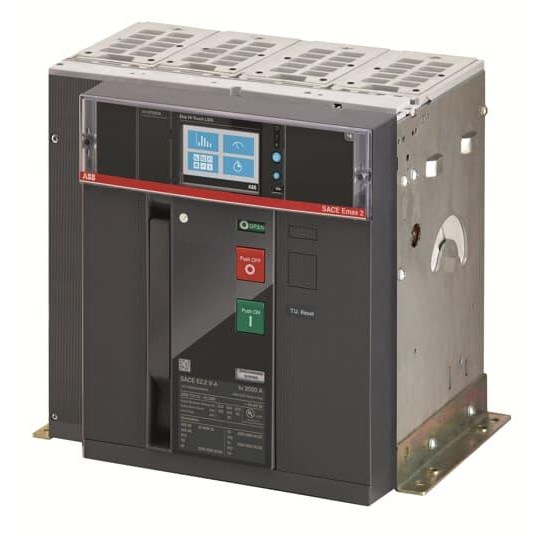

ABB 1SDA077453R1 ACB 1600A 4-P F Version Ekip Touch LSIG

Product Code: 1SDA077453R1

  • Automatic ACB with 1600 A rated current
  • Ekip Touch LSIG trip unit for precise control
  • 4-pole design, IP30 protection rating
  • Compact dimensions: 366x371x270 mm
  • UL approved for safety and reliability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Size of Frame E2.2
Indication Switched-off Indicator
No. of Poles 4
Power Loss (W) 170
Rated Current (A) 1600
Rated Instantaneous Short-Circuit Current - Ii (A) 2400
Rated Insulation Voltage AC (V) 635
Rated Operational Voltage AC (V) 600
Rated Uninterrupted Current - Iu (A) 1600
Design of Control Element Push Button
EAN 8015644838768
Poles 4P
Current Rating (A) 1600
Trip Unit - Electronic EKIP Touch LSIG
AC Voltage (V) 600
Frame E2.2
Overload Release Current Setting (A) 640
Main Circuit Electrical Connection Bolt Connection
No. of Auxiliary Change-over Contacts 4
Earth Fault Protection Yes
Main Current Circuit Connection Position Back Side
Rated Voltage (V) 600
Product Type Air Circuit Breaker
Brand ABB
Degree of Protection IP30
Depth 270 mm
Height 371 mm
Number of Poles 4
Power Loss 170 W
Rated Current 1600 A
Rated Insulation Voltage 635 V
Rated Voltage 600 VAC
Standards and Approvals UL
Terminal Type HR
Trip Unit Ekip Touch LSIG
Weight 45 kg
Width 366 mm

Description

C.BREAKER SACE EMAX2 E2.2N-A 1600 UL FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
