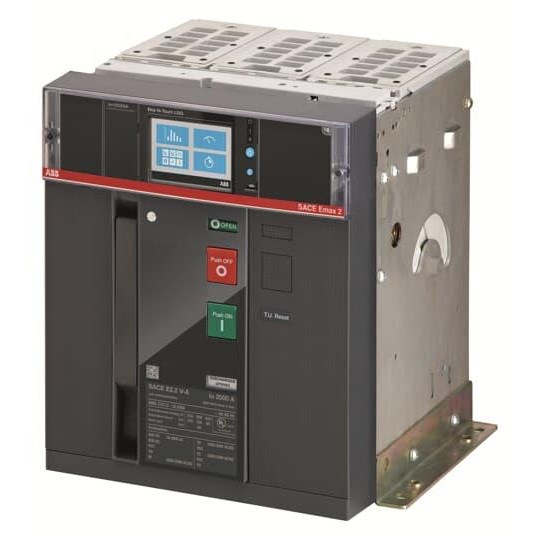

ABB 1SDA077293R1 ACB 2000A 3-P F Version Ekip Touch LSIG

Product Code: 1SDA077293R1

  • Automatic ACB with 2000 A rated current
  • Ekip Touch LSIG trip unit for enhanced protection
  • Rated voltage of 600 VAC, insulation at 635 V
  • Compact design: 276 mm wide, 371 mm high
  • IP30 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Size of Frame E2.2
Indication Switched-off Indicator
No. of Poles 3
Power Loss (W) 250
Rated Current (A) 2000
Rated Instantaneous Short-Circuit Current - Ii (A) 3000
Rated Insulation Voltage AC (V) 635
Rated Operational Voltage AC (V) 600
Rated Uninterrupted Current - Iu (A) 2000
Design of Control Element Push Button
EAN 8015644837167
Poles 3P
Current Rating (A) 2000
Trip Unit - Electronic EKIP Touch LSIG
AC Voltage (V) 600
Frame E2.2
Overload Release Current Setting (A) 800
Rated Voltage (V) 600
Main Circuit Electrical Connection Bolt Connection
No. of Auxiliary Change-over Contacts 4
Earth Fault Protection Yes
Main Current Circuit Connection Position Back Side
Product Type Air Circuit Breaker
Brand ABB
Degree of Protection IP30
Depth 270 mm
Height 371 mm
Number of Poles 3
Power Loss 250 W
Rated Current 2000 A
Rated Insulation Voltage 635 V
Rated Voltage 600 VAC
Release Type EL
Standards and Approvals UL
Terminal Type HR
Trip Unit Ekip Touch LSIG
Weight 45 kg
Width 276 mm

Description

C.BREAKER SACE EMAX2 E2.2N-A 2000 UL FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
