Specifications

Dimensions (mm)	276W x 371H x 270D
Size of Frame	E2.2
Maximum Operational Voltage AC (V)	600
No. of Poles	3
Power Loss (W)	170/pole
Rated Current (A)	1600
Rated Insulation Voltage AC (V)	635
Rated Operational Current AC-21A 415V (A)	1600
Rated Operational Voltage AC (V)	600
Rated Uninterrupted Current - Iu (A)	1600
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	1600
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	50
EAN	8015644859930
Poles	3P
Current Rating (A)	1600
AC Voltage (V)	600
Frame	E2.2
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Degree of Protection	IP30
Depth	270 mm
Height	371 mm
Interlockable	Yes
Number of Poles	3
Power Loss	170 W
Rated Current	1600 A
Rated Insulation Voltage	635 V
Rated Voltage	600 VAC
Standards and Approvals	UL
Terminal Type	HR
Weight	45 kg
Width	276 mm

Description

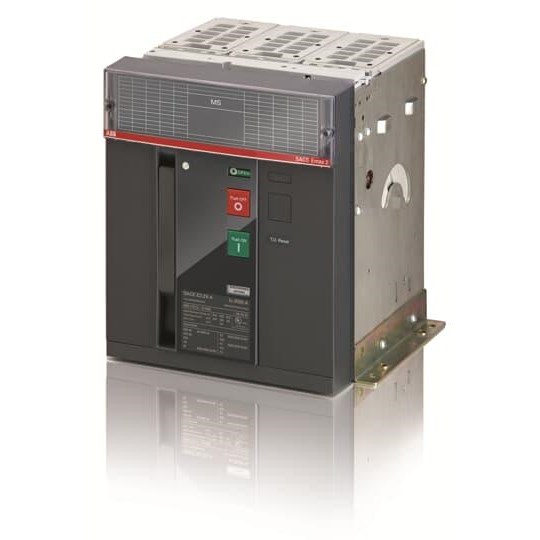

C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2N-A/MS 1600 UL FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL
