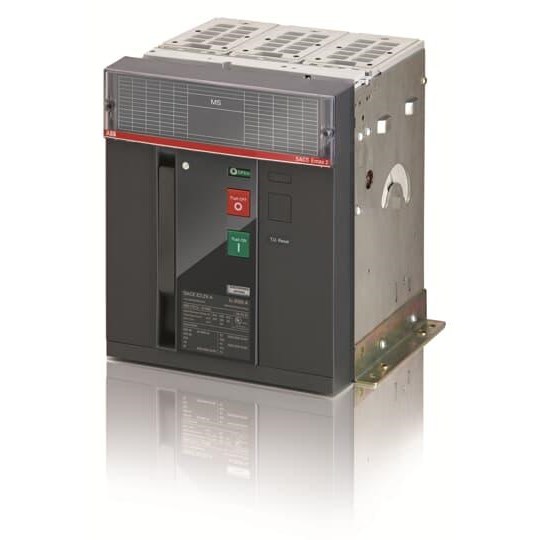

When selecting a non-automatic air circuit breaker (ACB) for industrial or commercial applications, understanding the technical specifications is crucial. This particular ACB is designed to deliver reliable performance with its robust features tailored to meet demanding electrical environments.
Rated at 2000 A, this ACB is well-suited for high-capacity installations where managing substantial current loads is essential. The rated insulation voltage of 635 V and operating voltage of 600 VAC ensure it can handle significant electrical demands while maintaining safety and efficiency in your systems.
The power loss stands at 250 W, which reflects its efficiency in operation—an important consideration when assessing long-term energy costs and system sustainability. With three poles, this ACB provides comprehensive protection across different phases, making it versatile for various setups.
In terms of physical dimensions, the unit measures 276 mm in width, 371 mm in height, and has a depth of 270 mm. These compact dimensions facilitate easy integration into existing panels or enclosures without compromising on space or accessibility.
Constructed with an IP30 degree of protection, this ACB offers adequate safeguarding against solid objects over 2.5 mm but does not provide water resistance. Therefore, ensuring proper installation conditions that avoid exposure to moisture will be critical to maintain optimal function.
Compliance with UL standards underscores the product’s adherence to stringent safety and operational guidelines—a reassurance for those prioritizing certified quality in their electrical components.
Weighing in at 45 kg, the ACB's heft reflects its durable construction designed to withstand rigorous use over time while offering stability during installation and operation. Its design balances weight with functionality effectively.
In summary, this non-automatic ACB combines essential features such as high current rating and robust construction with compliance to industry standards—making it a suitable choice for professionals seeking dependable circuit protection solutions.
