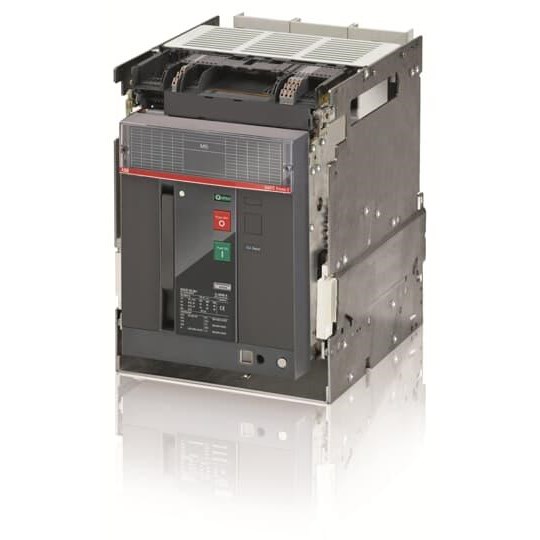

When it comes to selecting a reliable and robust non-automatic air circuit breaker (ACB) for industrial and commercial applications, understanding the specifications is key. This particular ACB model is designed with precision to meet demanding electrical environments, offering a dependable solution for your power distribution needs.
With a rated current of 1250 A, this ACB is well-suited for handling substantial electrical loads, making it ideal for medium to large-scale facilities. The device operates efficiently within a rated voltage of 690 VAC, ensuring compatibility with standard industrial power systems. Additionally, its rated insulation voltage stands at 1000 V, providing an extra layer of safety against potential faults.
One notable feature is the rated impulse withstand voltage of 12 kV. This specification highlights the product's capability to endure transient overvoltages typically caused by lightning strikes or switching surges—a critical aspect for maintaining system integrity in adverse conditions.
The ACB boasts a compact design with dimensions measuring 317 mm in width, 425 mm in height, and a depth of 383 mm. Despite its solid construction weighing in at 48 kg, it maintains ease of integration into existing panels or switchboards without excessive space requirements. Furthermore, the degree of protection offered by this unit is IP30—suitable for indoor environments where dust ingress must be minimized but where water exposure isn't prevalent.
Power loss is another important consideration; this model registers a power loss of just 176 W under full load conditions. This efficiency helps reduce unwanted heat generation and contributes to overall energy savings within your electrical system.
Designed in compliance with IEC 309 standards and approvals, you can trust that this non-automatic ACB adheres to international benchmarks for safety and performance—ensuring peace of mind when deployed across various applications.
In summary, this three-pole non-automatic ACB offers robust performance characteristics suitable for diverse industrial settings needing reliable circuit protection solutions. Its technical features are tailored towards users seeking detailed specifications without unnecessary embellishments—perfectly aligning with professional expectations within the field.
