Specifications

Dimensions (mm)	317W x 425H x 383D
Size of Frame	E2.2
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	288
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	1600
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	1600
Breaking Capacity 415V AC - Icu (kA)	66
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	66
EAN	8015644773434
Poles	3P
Breaking Capacity (kA)	66 @415V AC
Current Rating (A)	1600
AC Voltage (V)	690
Frame	E2.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	1600
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	1600
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Interlockable	Yes
Number of Poles	3
Power Loss	288 W
Rated Current	1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	48 kg
Width	317 mm

Description

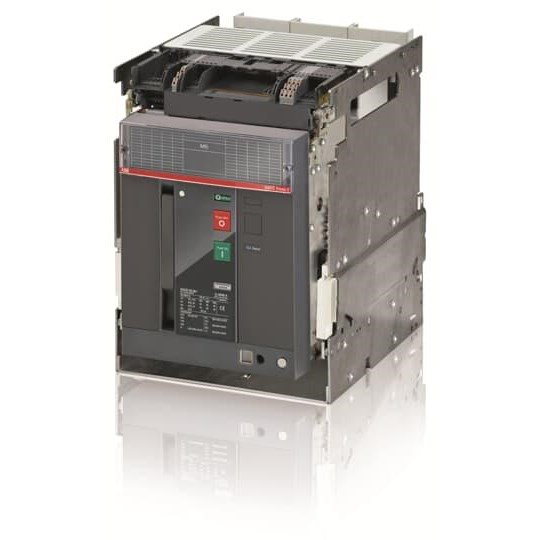

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2N/MS 1600 THREE-POLE
