Specifications

Dimensions (mm)	407W x 425H x 383D
Maximum Operational Voltage AC (V)	690
No. of Poles	4
Power Loss (W)	450
Rated Current (A)	2000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	2000
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	2000
Rated Short-time Withstand Current - Icw (kA/3s)	50
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	2000
Rated Voltage (V)	690
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	66
EAN	8015644773854
Poles	4P
Current Rating (A)	2000
AC Voltage (V)	690
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	2000
Rated Operational Voltage (V)	690
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Current Type	AC
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Interlockable	Yes
Number of Poles	4
Power Loss	450 W
Rated Current	2000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	55 kg
Width	407 mm

Description

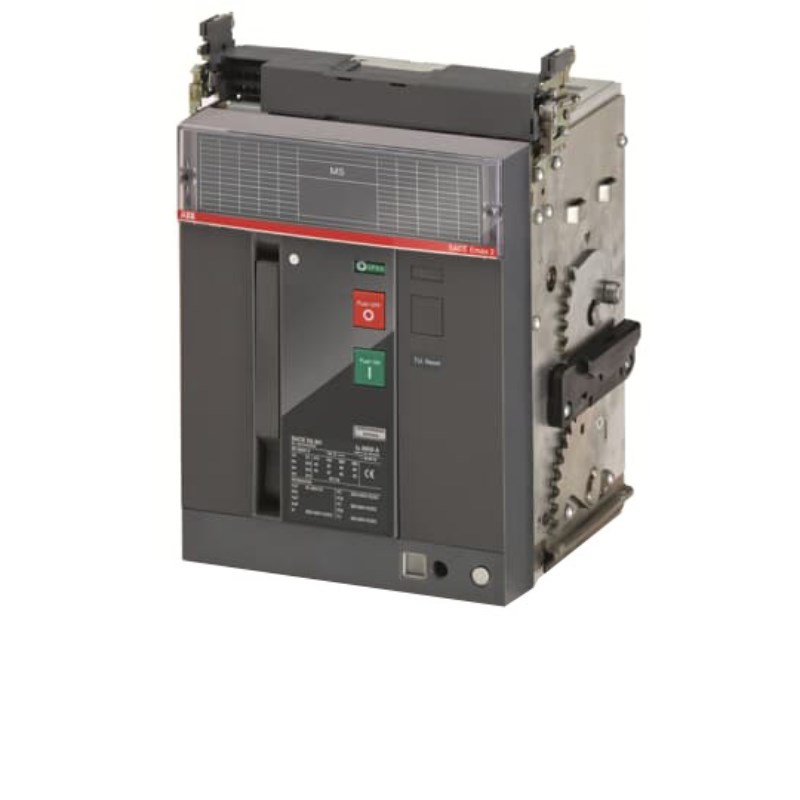

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2N/MS 2000 FOUR-POLE
