Specifications

Dimensions (mm)	551W x 425H x 383D
Size of Frame	E4.2
Maximum Operational Voltage AC (V)	690
No. of Poles	4
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	3200
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	3200
Breaking Capacity 415V AC - Icu (kA)	100
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	3200
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	85
EAN	8015644773922
Poles	4P
Breaking Capacity (kA)	100 @415V AC
Current Rating (A)	3200
AC Voltage (V)	690
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	85
Iu - Uninterrupted Current Rating (A)	3200
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Interlockable	Yes
Number of Poles	4
Power Loss	743 W
Rated Current	3200 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	74 kg
Width	551 mm

Description

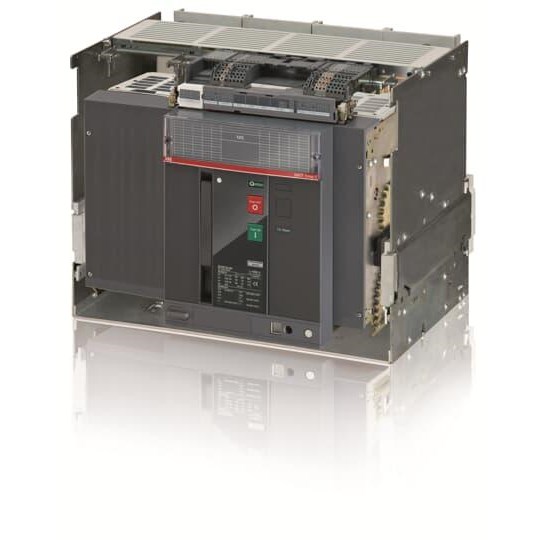

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2H/MS 3200 FOUR-POLE
