Specifications

Dimensions (mm)	384W x 371H x 270D
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	425
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	3200
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	3200
Rated Short-time Withstand Current - Icw (kA/3s)	50
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	3200
Rated Voltage (V)	690
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	66
EAN	8015644772680
Poles	3P
Current Rating (A)	3200
AC Voltage (V)	690
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	3200
Rated Operational Voltage (V)	690
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Fixed
Current Type	AC
Degree of Protection	IP30
Depth	270 mm
Height	371 mm
Interlockable	Yes
Number of Poles	3
Power Loss	425 W
Rated Current	3200 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Terminal Type	Bolt
Tightening Torque	70 N-m
Version	Fixed
Weight	56 kg
Width	384 mm

Description

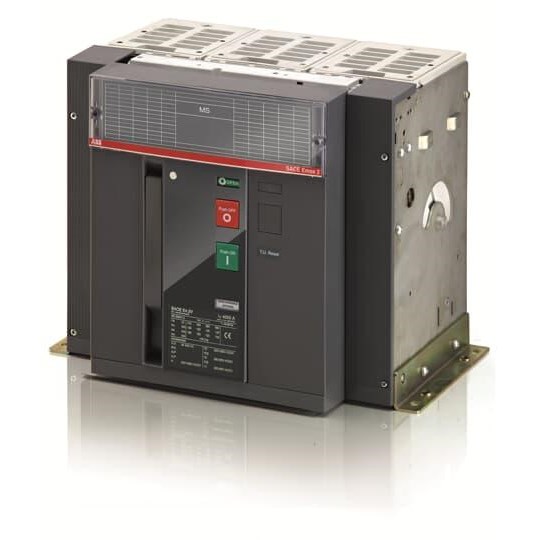

C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2N/MS 3200 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL
