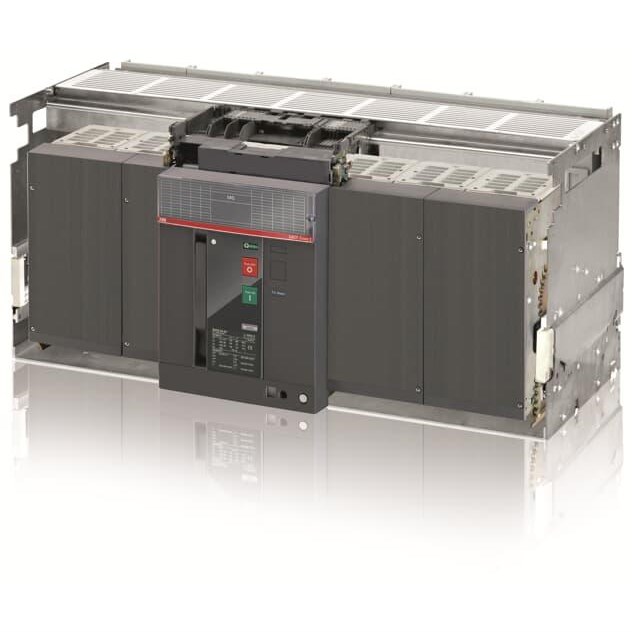

When it comes to choosing a reliable and sturdy non-automatic air circuit breaker (ACB) for industrial or commercial applications, this product stands out with its robust specifications tailored to meet demanding electrical environments. Designed to handle a rated current of 5000 A, this ACB is well-suited for high-capacity systems that require consistent performance.
The unit's rated voltage capacity is 690 VAC, making it compatible with standard industrial power systems. Its ability to withstand a rated impulse voltage of 12 kV ensures resilience against transient overvoltages commonly encountered in complex electrical networks. Additionally, the device boasts a rated insulation voltage of 1000 V, providing an extra layer of safety and reliability.
With an IP30 degree of protection, this ACB offers adequate defense against solid foreign objects larger than 2.5 mm while being suitable for indoor installations where moisture exposure is minimal. The four-pole configuration enhances versatility in various electrical setups by allowing balanced load distribution across multiple phases.
Despite its substantial capabilities, the unit maintains manageable dimensions: a width of 1069 mm, height of 425 mm, and depth of 383 mm. Weighing in at 148 kg, it's engineered for stability without compromising on installation flexibility.
Power efficiency is another key feature; the ACB has a power loss rating of just 850 W—an essential consideration for minimizing energy wastage in large-scale operations. Compliance with IEC 309 standards further underscores its quality and adherence to international safety norms.
In summary, this non-automatic ACB offers an ideal blend of performance and practicality for professionals seeking dependable circuit protection solutions. Its specifications are finely tuned to support high-demand applications while ensuring ease of integration into existing systems.
