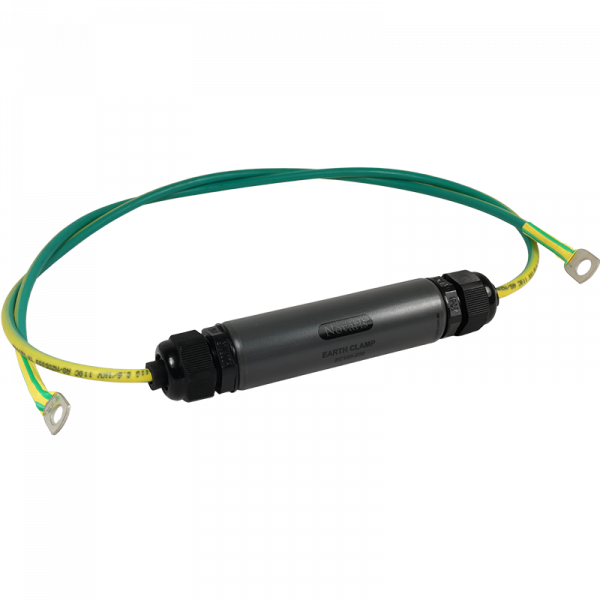

Novaris EC100-800 Earth Clamp 100kA 800VDC 10sq-mm Flying Leads 30mm W 100mm H IP65

Product Code: EC100-800

Suitable for 800 VDC applications
Handles up to 100 kA current
IP65-rated protection
Operates from -40 to 70°C
Compact size: 30mm width

Specifications

Product Type	Earth Clamp
Brand	NOVARIS
Capacitance	<4 pF
Connection Type	10 sq-mm Flying Leads
Degree of Protection	IP65
Height	100 mm
Humidity	5-95%
Operational Temperature	-40 to 70 deg C
Rated Current	100 kA
Rated Voltage	800 VDC
Voltage Protection Level	<1.5 kV
Weight	200 g
Width	30 mm
