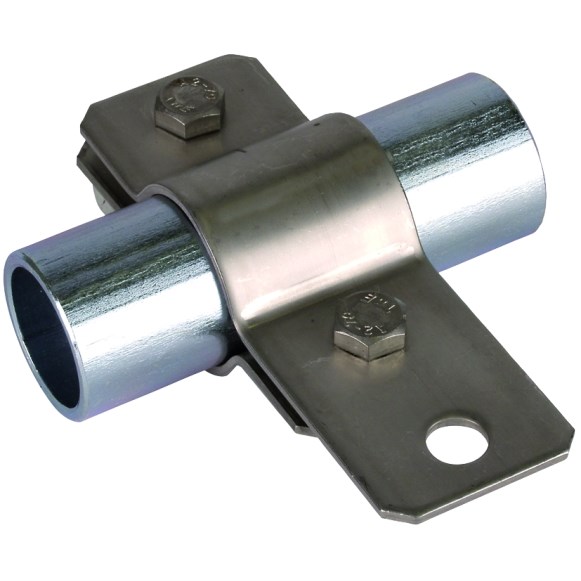

DEHN 410349 Earthing Pipe Clamp 42mm 11mm M10 x 25mm Screw Stainless Steel

Product Code: 410349

  • M10 x 25 mm screw connection
  • Stainless steel construction
  • Fits earthing rods, 42 mm range
  • Handles up to 100 kA lightning current
  • Complies with EN and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 132.5W x 40D
Suitable For Earthing
Weight (kg) 0.232
Class (Lightning Current Carrying Capability) (kA) 100
Reference No. 410349
No. of Conductors 1
Type Equipotential Bonding
Clamping Range (mm) 42
Surface Protection Untreated
Conductor Diameter (mm) 42
Clamping Range Rd/Rd (mm) 42
Product Type Earthing Pipe Clamp
Brand DEHN
Clamping Range 42 mm
Conductor Size 42 mm
Connection Type M10 x 25 mm Screw
Depth 40 mm
Finish Untreated
Lightning Current Carrying Capability 100 kA
Material Stainless Steel
Number of Conductors 1
Screw Size M8 x 20mm
Size 11 mm
Standards and Approvals EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC 62305-3
Suitable For Use With Earthing Rods
Weight 0.232 kg
Width 132.5 mm
