Product Code: MPEI4P201

Illuminated red pushbutton for clear visibility
Operates at 110-130 VAC with a pull release
IP20/IP65 protection against dust and water
Withstands temperatures from -25 to 70°C
Complies with multiple international standards

Specifications

Contacts	1NC
Rated Voltage AC (V)	110 - 130
LED Block Rated Voltage	110-130 VAC
Bezel Material	Plastic
Product Type	Emergency Stop Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 40mm
Colour	Red
Contact Configuration	1NC
Degree of Protection	IP20, IP65
Function	Pull Release
Illumination	Illuminated
Lamp Type	Built-in LED
Material	Plastic
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110-130 VAC
Release Method	Pull
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

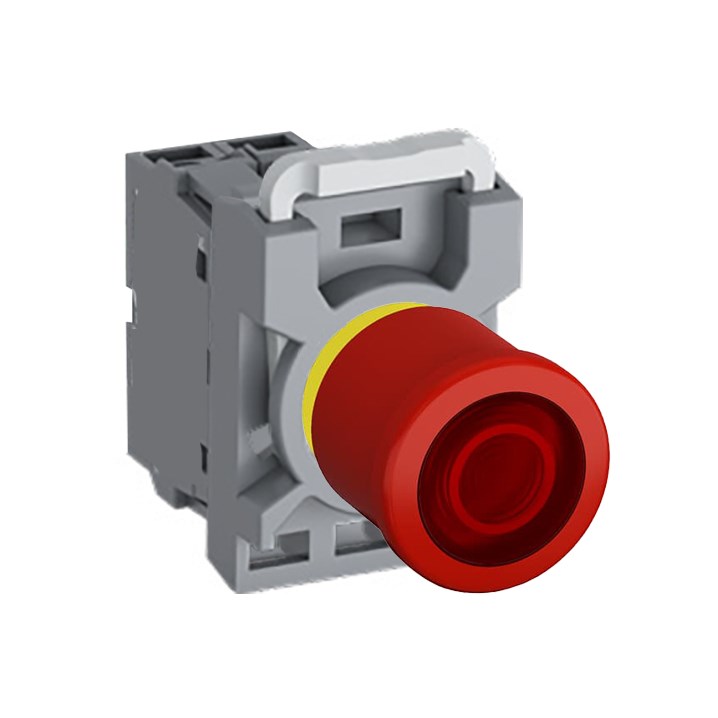

This illuminated mushroom emergency-stop pushbutton kit features a red 40mm diameter button with a pull release mechanism. It is equipped with an integrated red LED and operates on 110-130VAC power supply. The contact configuration is 1NC. The kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
