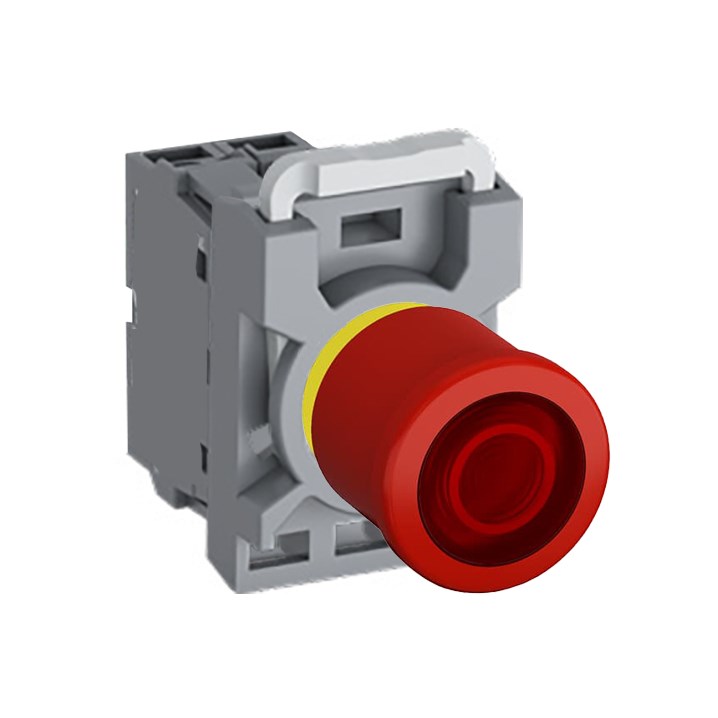

ABB MPEI4P401 Emergency Stop Pushbutton Kit Illuminated 1NC Red Pull Plastic 230VAC

Product Code: MPEI4P401

  • 230 VAC illuminated pushbutton
  • Durable plastic construction
  • IP20/IP65 protection rating
  • Operates in -25 to 70°C range
  • Pull release with 1NC contact
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Mushroom Diameter (mm) 40
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
LED Colour Red
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Emergency Stop Pushbutton is a red button with a 40mm diameter. It features a 1NC (Normally Closed) pull release mechanism. This pushbutton is part of the Modular Plastic range and operates at 230VAC.
