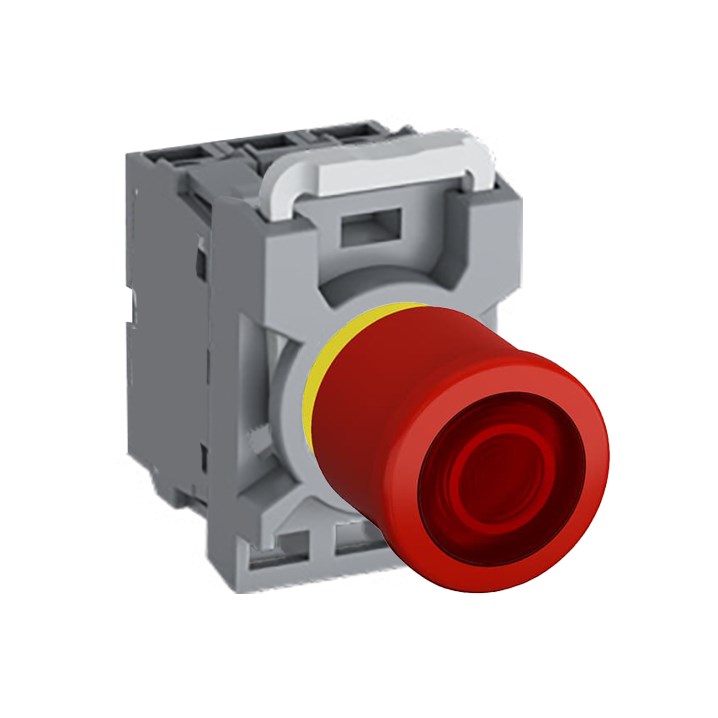

ABB MPEI4P402 Emergency Stop Pushbutton Kit Illuminated 2NC Red Pull Plastic 230VAC

Product Code: MPEI4P402

  • Illuminated red pushbutton for clear visibility.
  • Operates at 230 VAC with 690 V insulation voltage.
  • Durable plastic construction withstands -25 to 70°C.
  • IP20/IP65 protection for versatile environments.
  • Complies with multiple international standards.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
No. of Auxiliary Contacts 2NC
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 2NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
