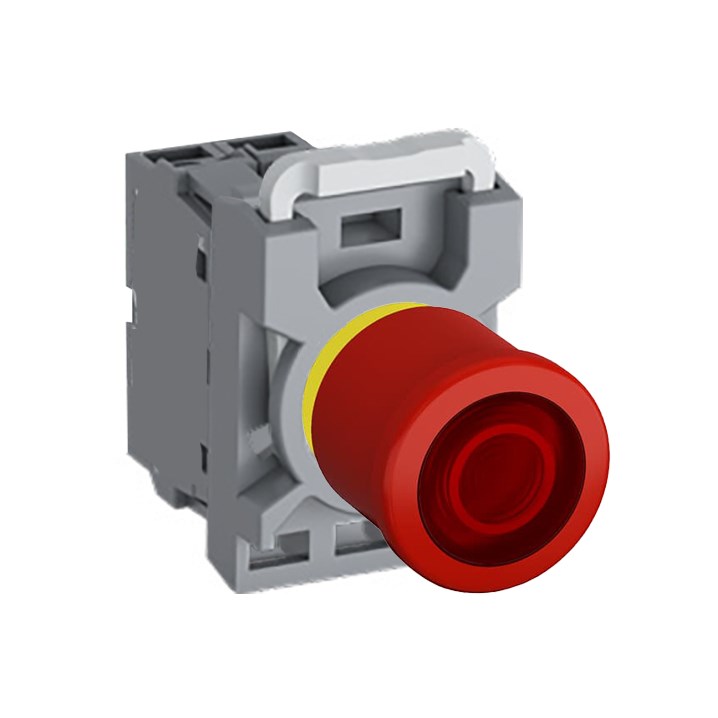

ABB MPEI4P101 Emergency Stop Pushbutton Kit Illuminated 1NC Red Pull Plastic 24VAC/DC

Product Code: MPEI4P101

  • 24 VAC/VDC illuminated red pushbutton
  • Durable plastic construction
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65
  • Certified to multiple standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Mushroom Diameter (mm) 40
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
LED Colour Red
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Illuminated Emergency Stop Pushbutton is designed for use in emergency situations. It features a red colour and has a 40mm diameter. The pushbutton has a 1NC (normally closed) configuration and can be released by pulling it. It is part of the Modular Plastic range and operates on 24VAC/DC power.
