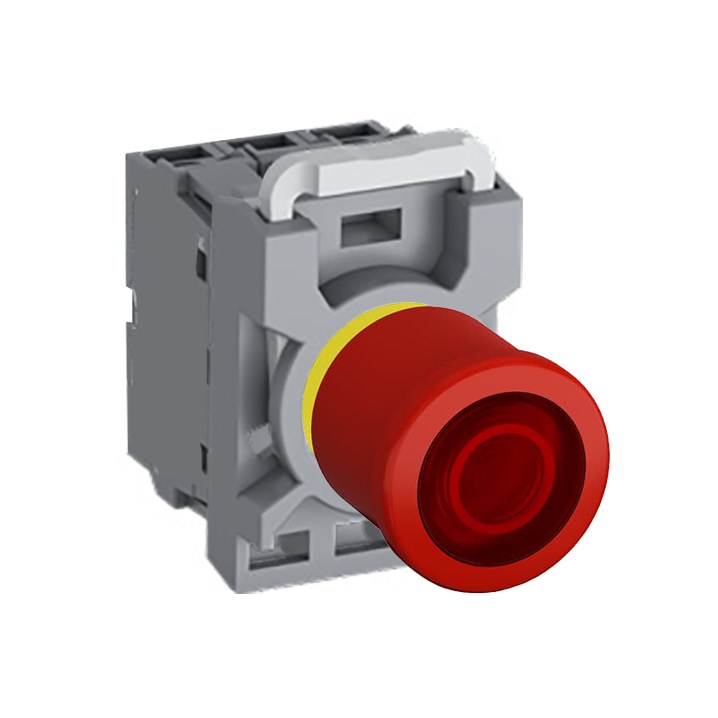

ABB MPEI4P102 Emergency Stop Pushbutton Kit Illuminated 2NC Red Pull Plastic 24VAC/DC

Product Code: MPEI4P102

  • Illuminated red pushbutton for clear visibility
  • Operates at 24 VAC/VDC with 2NC contacts
  • Durable plastic construction, IP20/IP65 rated
  • Wide temp range: -25 to 70°C for versatility
  • Complies with CSA, DIN, EN, IEC, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
No. of Auxiliary Contacts 2NC
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 2NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
