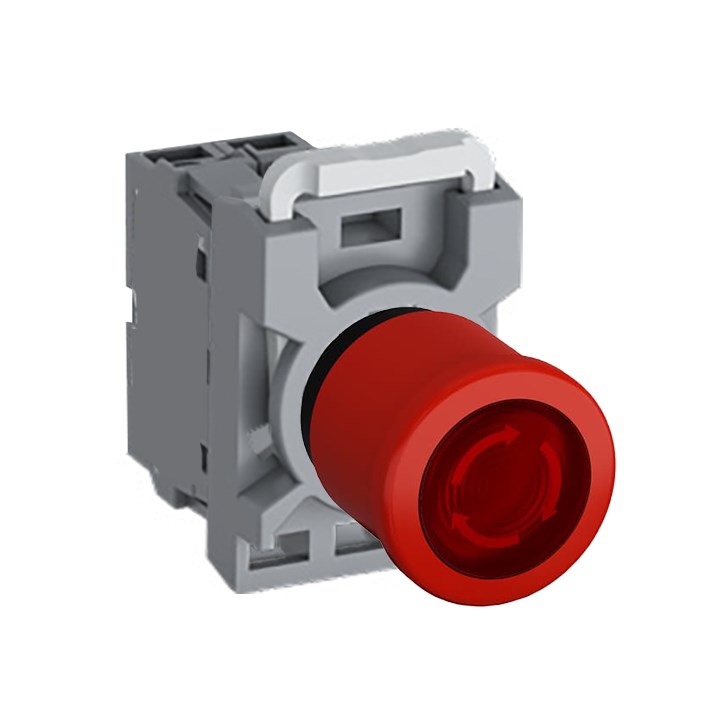

ABB MPEI4T201 Emergency Stop Pushbutton Kit Illuminated 1NC Red Plastic 110-130VAC

Product Code: MPEI4T201

  • Illuminated red pushbutton for easy visibility
  • Suitable for 110-130 VAC applications
  • Operates in -25 to 70°C environments
  • IP20/IP65 protection against dust and water
  • Compliant with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated mushroom emergency-stop pushbutton kit features a red 40mm diameter button with a twist release mechanism. It is equipped with an integrated red LED and operates on 110-130VAC power supply. The contact configuration is 1NC. This kit belongs to the modular plastic range and has an IP66 rating for the front and IP20 rating for the terminals.
