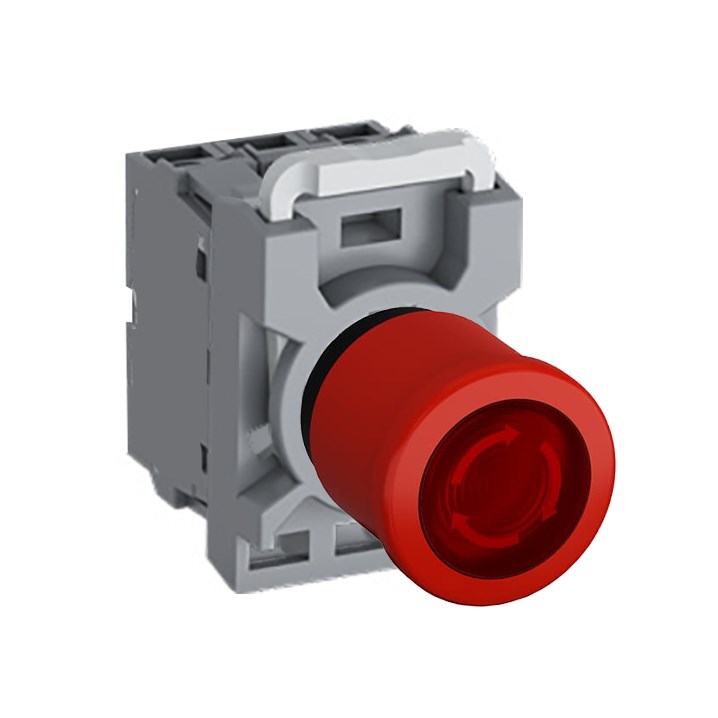

ABB MPEI4T002 Emergency Stop Pushbutton Kit Illuminated 2NC Red Plastic 12VDC

Product Code: MPEI4T002

  • Illuminated red pushbutton for clear visibility
  • Operates at 12 VDC with 2NC contact config
  • Durable plastic construction, IP20/IP65 rated
  • Wide temp range: -25 to 70°C
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
No. of Auxiliary Contacts 2NC
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 2NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VDC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
