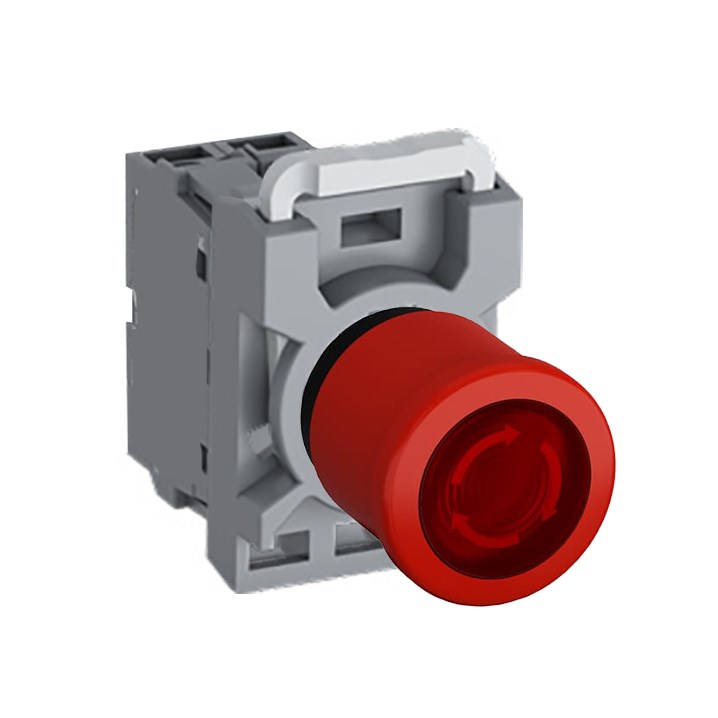

ABB MPEI4T301 Emergency Stop Pushbutton Kit Illuminated 1NC Red Plastic 220VDC

Product Code: MPEI4T301

  • Illuminated red pushbutton for clear visibility
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65 rated
  • Complies with multiple international standards
  • Rated voltage of 220 VDC
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This red illuminated mushroom emergency-stop pushbutton kit has a 40mm diameter and features a twist release mechanism. It comes with an integrated red LED and operates at 220VDC. The contact configuration is 1NC. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
