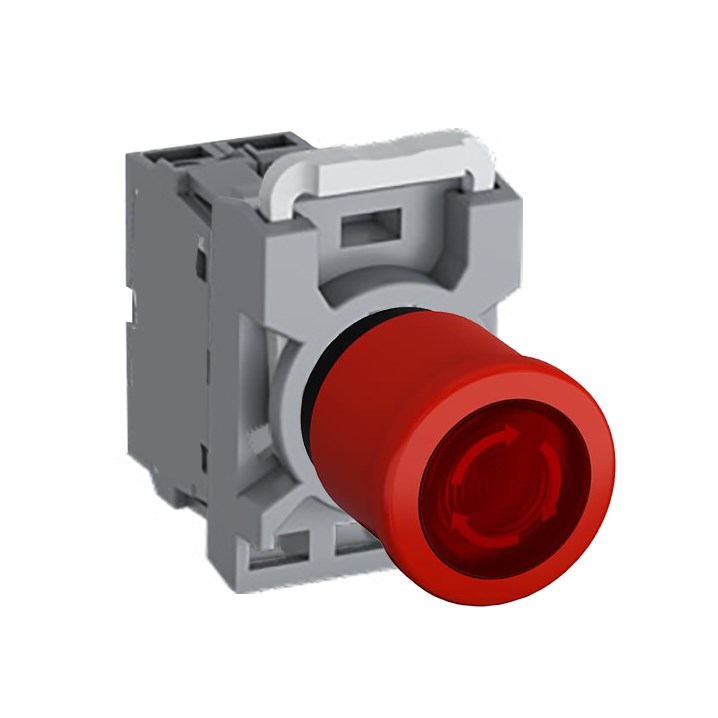

ABB MPEI4T401 Emergency Stop Pushbutton Kit Illuminated 1NC Red Plastic 230VAC

Product Code: MPEI4T401

  • Illuminated red pushbutton for clear visibility
  • Operates at 230 VAC with IP20/IP65 protection
  • Durable plastic suitable for -25 to 70°C environments
  • Complies with multiple international standards
  • Features a 1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Mushroom Diameter (mm) 40
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
LED Colour Red
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

The Illuminated Emergency Stop Pushbutton is a red button with a 40mm diameter. It features a 1NC (normally closed) twist release mechanism. This pushbutton is part of the Modular Plastic range and operates at 230VAC.
