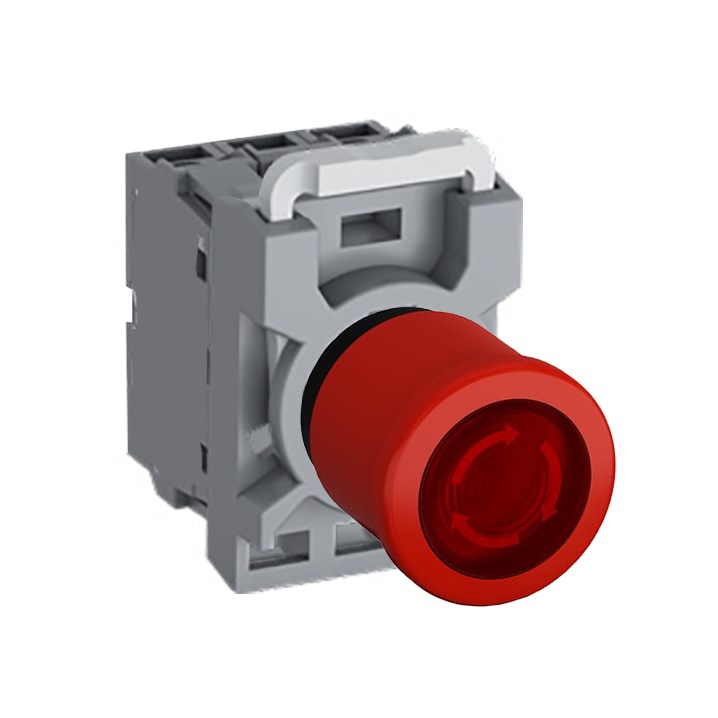

ABB MPEI4T420 Emergency Stop Pushbutton Kit Illuminated 2NO Red Plastic 230VAC

Product Code: MPEI4T420

  • Illuminated red pushbutton for clear visibility
  • Operates at 230 VAC with 2NO contacts
  • Durable plastic construction
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
No. of Auxiliary Contacts 2NO
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 2NO
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
