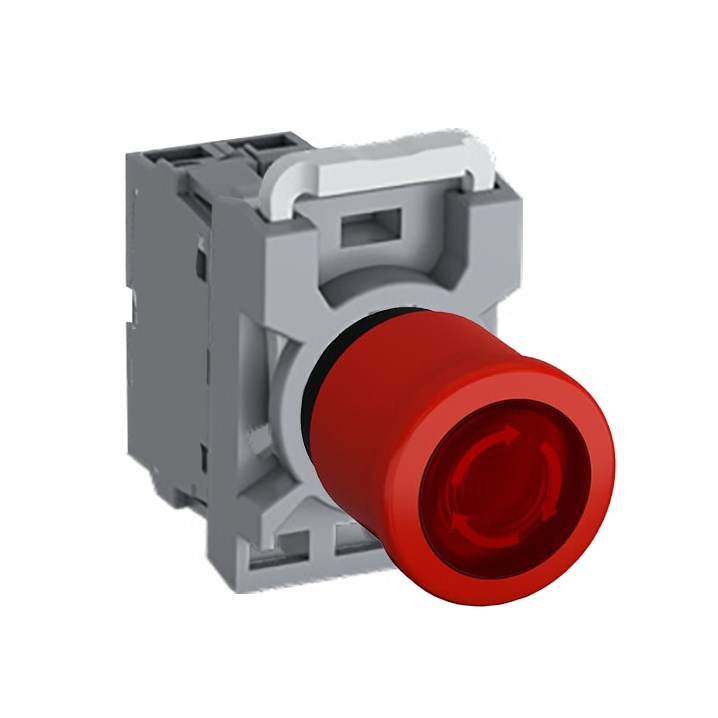

ABB MPEI4T110 Emergency Stop Pushbutton Kit Illuminated 1NO Red Plastic 24VAC/DC

Product Code: MPEI4T110

  • 24 VAC/VDC illuminated red pushbutton
  • Plastic build with IP20/IP65 protection
  • Operates from -25 to 70°C
  • Meets multiple international standards
  • 1NO contact, 10A thermal current
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
No. of Auxiliary Contacts 1NO
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NO
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
