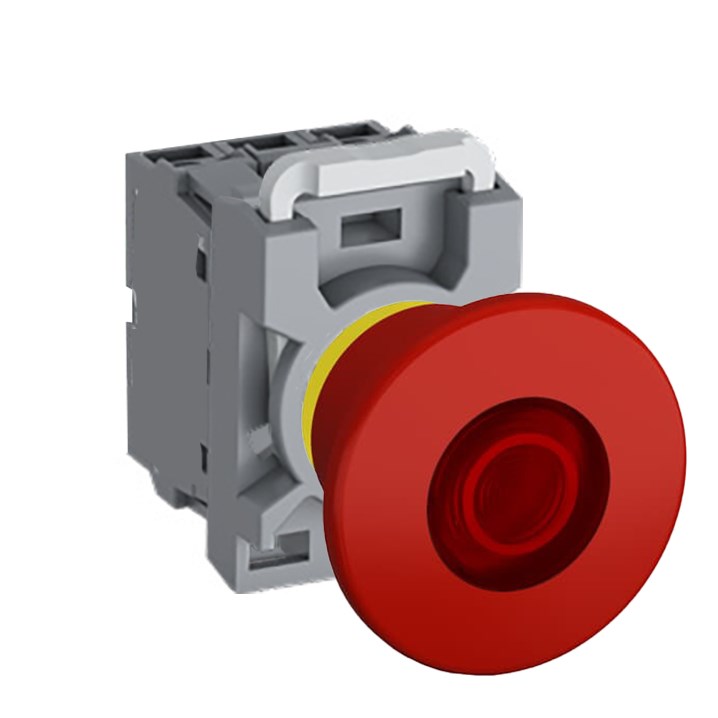

ABB MPEI6P311 Emergency Stop Pushbutton Kit Illuminated 1NO+1NC Red Pull Plastic 220VDC

Product Code: MPEI6P311

  • Illuminated for easy visibility
  • Red plastic construction
  • Operates in -25 to 70°C range
  • IP20/IP65 protection rating
  • 1NO+1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
