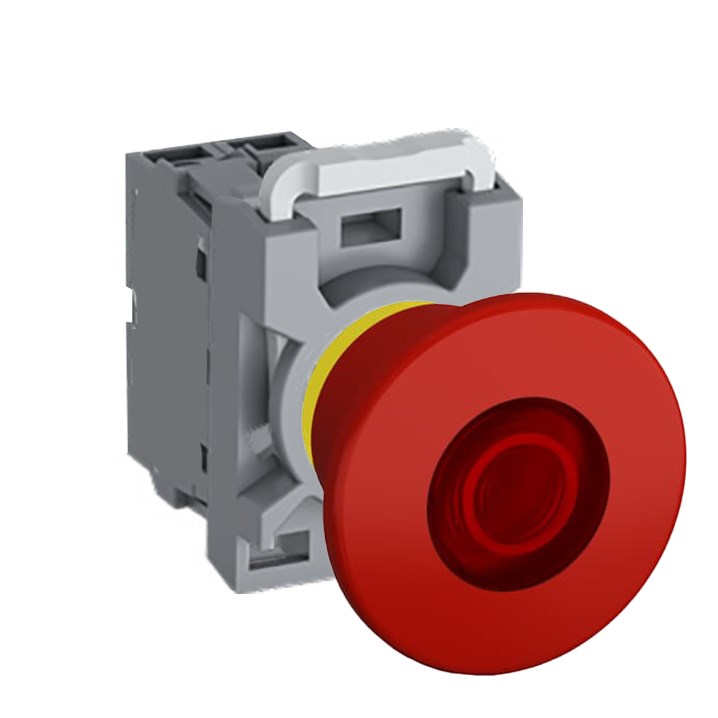

ABB MPEI6P101 Emergency Stop Pushbutton Kit Illuminated 1NC Red Pull Plastic 24VAC/DC

Product Code: MPEI6P101

  • Illuminated with red plastic design
  • Operates at 24 VAC/VDC
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65
  • Pull release with 1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
