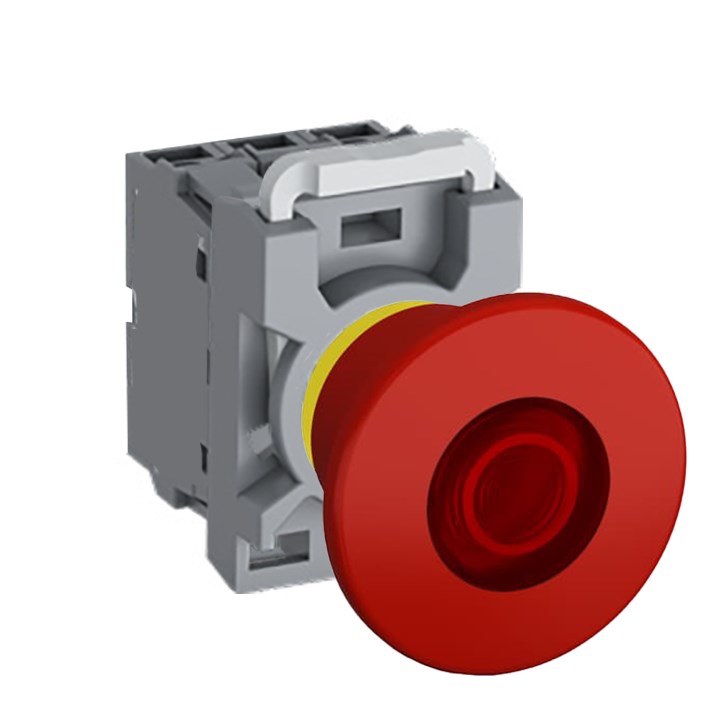

ABB MPEI6P111 Emergency Stop Pushbutton Kit Illuminated 1NO+1NC Red Pull Plastic 24VAC/DC

Product Code: MPEI6P111

  • Illuminated red pushbutton for clear visibility
  • Operates at 24 VAC/VDC
  • Durable plastic construction
  • IP20/IP65 protection for varied environments
  • Conforms to multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Auxiliary Contacts 1NO+1NC
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
