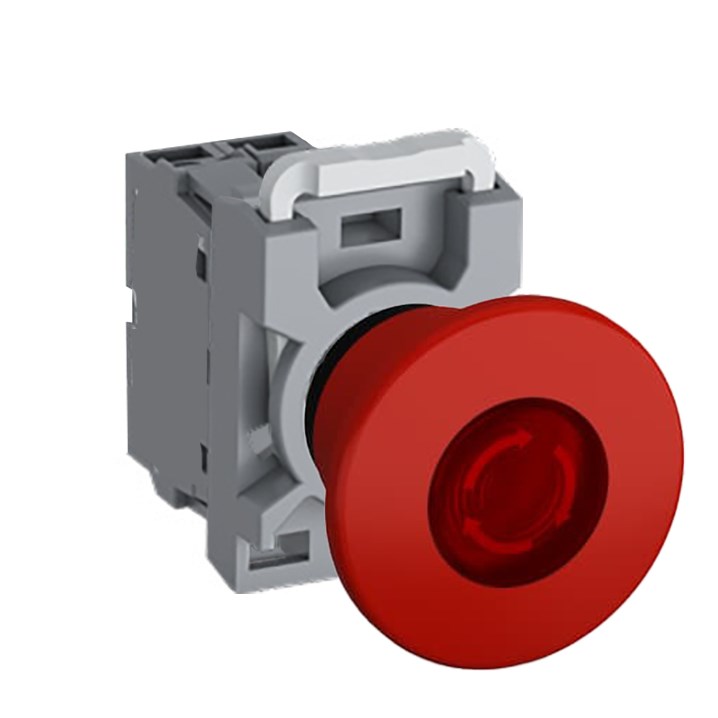

ABB MPEI6T010 Emergency Stop Pushbutton Kit Illuminated 1NO Red Plastic 12VDC

Product Code: MPEI6T010

  • Operates at 12 VDC, insulated to 690 V
  • Illuminated red plastic design
  • Withstands temps from -25 to 70°C
  • Meets multiple international standards
  • IP20/IP65 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NO
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
