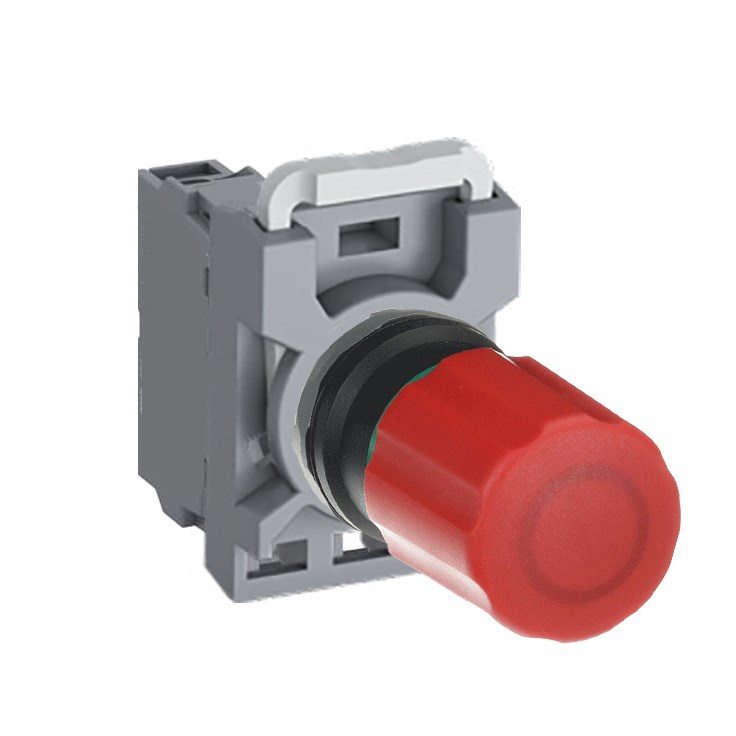

When selecting a pushbutton for industrial or commercial applications, understanding the technical specifications is crucial. This non-illuminated red pushbutton offers a robust solution, crafted from durable plastic to withstand various operational environments.
Designed to operate effectively within temperatures ranging from -25°C to 70°C, this pushbutton is versatile enough for numerous settings. Its degree of protection is rated at IP20 and IP65, meaning it provides substantial protection against dust ingress and low-pressure water jets from any direction, making it suitable for indoor use where occasional exposure to moisture might occur.
Compliance with multiple standards and approvals such as CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 and UL 508 ensures that this pushbutton meets rigorous safety and performance criteria required in Australia and globally.
The electrical specifications are equally impressive. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this pushbutton can handle significant electrical demands while maintaining safety standards. The contact configuration is set as normally open (1NO), which means the circuit will be completed when the button is pressed—ideal for control circuits requiring a straightforward on/off mechanism.
Furthermore, it supports a rated thermal current of up to 10 A. This capacity makes it suitable for various control tasks without overheating under normal conditions.
The release method involves pulling back after activation—a feature that may add an extra layer of security by ensuring intentional engagement during operation. Such functionality can be particularly beneficial in environments where accidental activations need minimizing.
Overall this red non-illuminated pushbutton combines durability with high-performance electrical capability supported by comprehensive compliance with international standards making it an excellent choice for professionals seeking reliable components in their automation systems or control panels.
