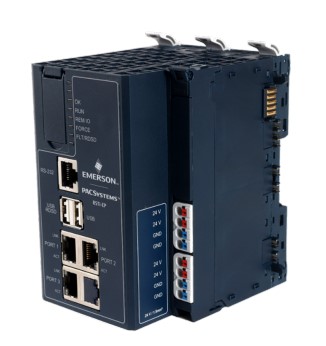

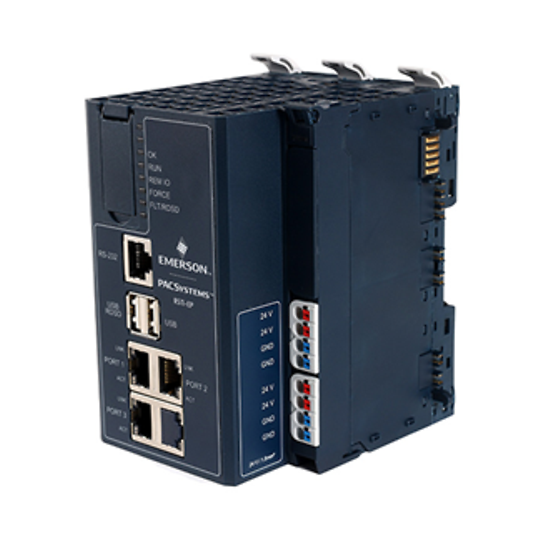

EMERSON PACSYSTEMS RSTI-EP PLC4MB 3X1GB ETH 70C 32XPROFINET RSTI-EP IO UP TO 64 MODULES EPXCPE240

Product Code: EPXCPE240

Technical Specifications

Ethernet Port One 100/1000 Mbps Port and One 2-Port Switch 100/1000 Mbps
Input/Output Signal 4096 Bits Discrete I/O, 32128 Words for Analog I/O
Memory 4MB of NvRAM plus 2MB of NvRAM
No. of Ethernet Ports One 100/1000 Mbps port and one 2-Port Switch 100/1000 Mbps
Number of USB Interfaces Two USB A2.0
Redundancy MRP Master / Client
Voltage DC (V) 24 (+/-25%)
Brand Emerson
Communication Protocols Ethernet: SRTP Client/Server, Modbus TCP, OPC UA Secure, EGD, PROFINET, HART passthrough, DNP3 Outstation, Serial: One RS232 / ASCII Serial, Modbus RTU-Slave
No. of Modules 64
Operational Temperature Range (°C) -40 to 70
Standards and Approvals Agency Approvals: UL, cUL, UKCA, FCC, RoHS, FCC, Reach, UL HaxLoc C1D2, ATEX Zone 2/ Marine Approvals: ABS, BV, DNV GL
