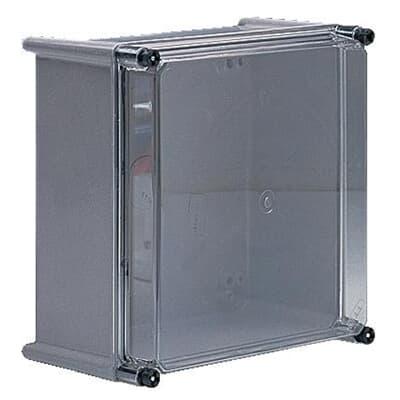

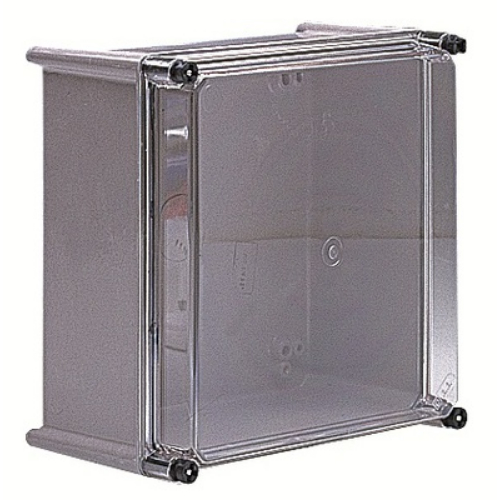

ABB APO12C MODULAR POLYESTER BOX WITH CLEAR COVER IP66

Product Code: APO12C

The modular glass fibre reinforced polyester box is designed for harsh external applications such as mining, shipyards, and marine/oil environments. It is made of grey RAL7035 material with a clear polycarbonate cover that has an IP66 rating. The box can withstand high temperatures up to 70°C continuously and is maintenance-free and corrosion resistant. It can be mounted on both walls and poles, with dimensions of 603Hx603Wx210Dmm.

Technical Specifications

Brand ABB
Colour Grey, RAL 7035
Cover Style Closed
Degree of Protection IP66
Dimensions (mm) 603H X 603W X 210D
Material Plastic
Mounting Type Surface Mounted (Plaster)
Thickness (mm) 3.5 - Cabinet Plate, 3 - Door Plate
