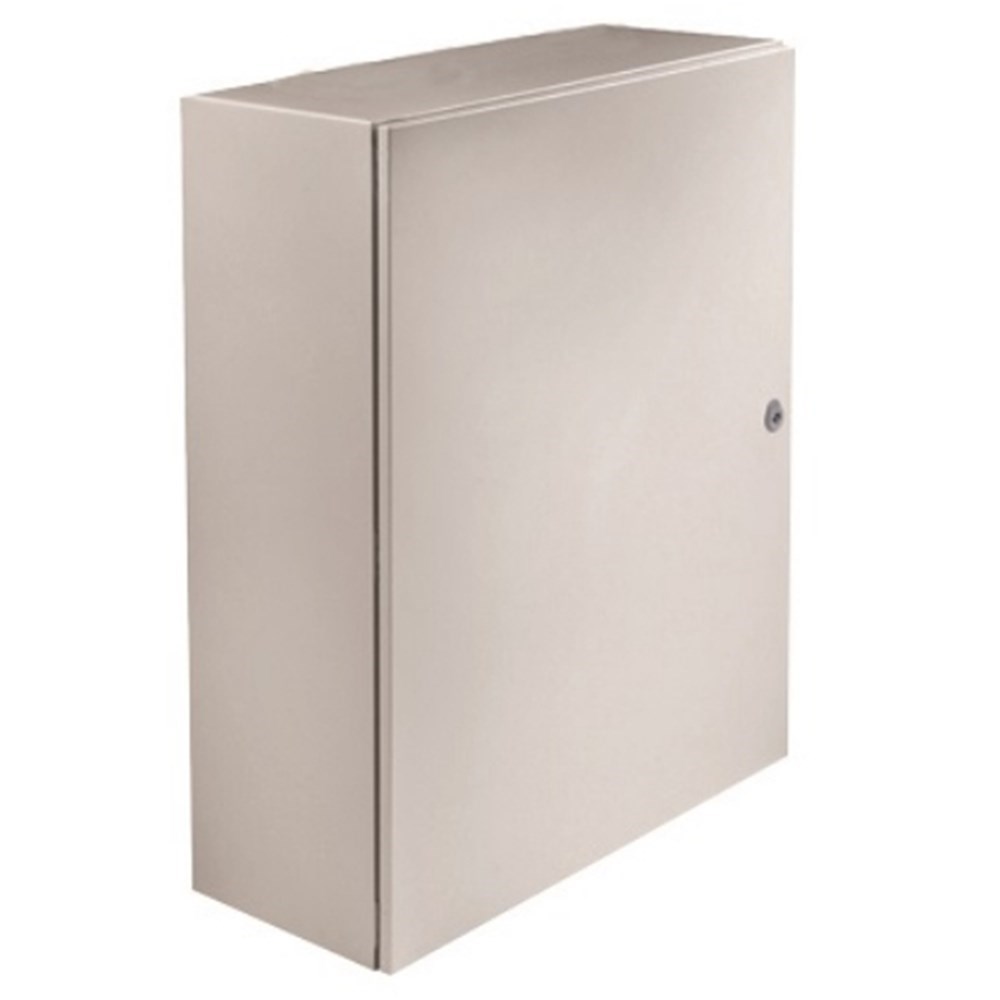

IPD MSB121040G Metal Enclosure Mild Steel 1000W 1200H 400D RAL7035 Light Grey IP66 Single Door

Product Code: MSB121040G

  • Durable mild steel construction
  • High protection: IP66 rated
  • Large size: 1000mm W x 1200mm H x 400mm D
  • Light grey finish, RAL 7035
  • Includes single door design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 1200H x 1000W x 400D
No. of Locks 3 points
Mounting Plate Size (mm) 1170W x 950H
No. of Hinges 3
Weight (kg) 78.7
Product Type Metal Enclosure
Brand IPD
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 400 mm
Door Type Single
Height 1200 mm
Material Mild Steel
Mounting Plate Size 950 mm H x 1170 mm W
Number of Hinges 3
Number of Locks 3
Standards and Approvals AS/NZS 61439.1:2016
Weight 78.7 kg
Width 1000 mm

Description

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It features a 3-point locking rod and 3 hinges for secure closure. The injected polyurethane sealing gasket provides additional protection against environmental elements. With a cable entry size of 140x900, this enclosure has dimensions of 1200Hx1000Wx400Dmm, providing ample space for equipment storage.
